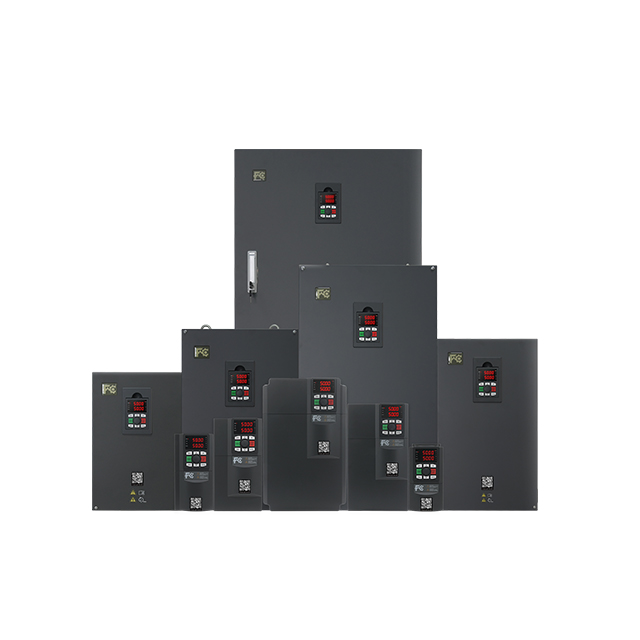

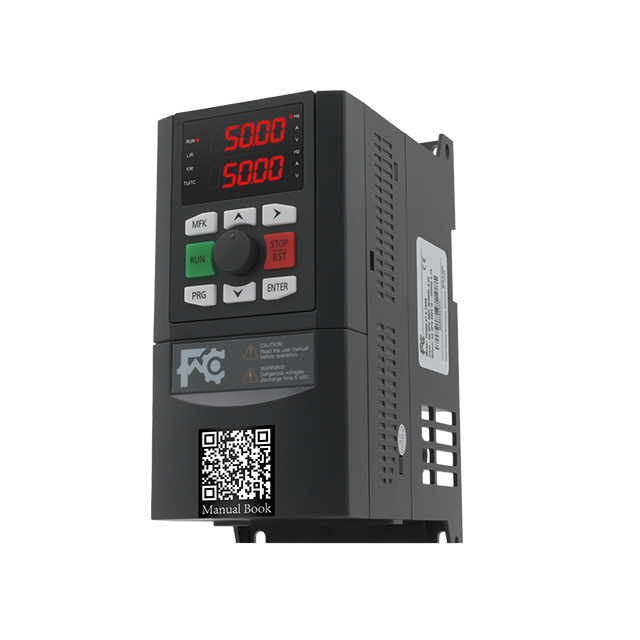

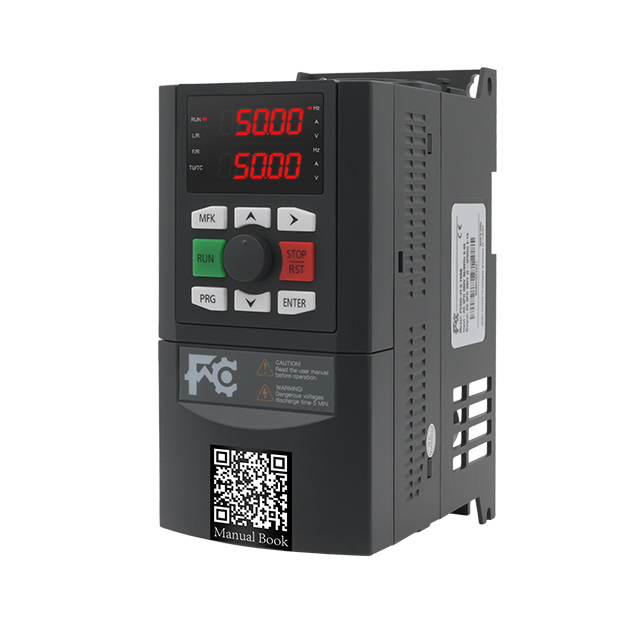

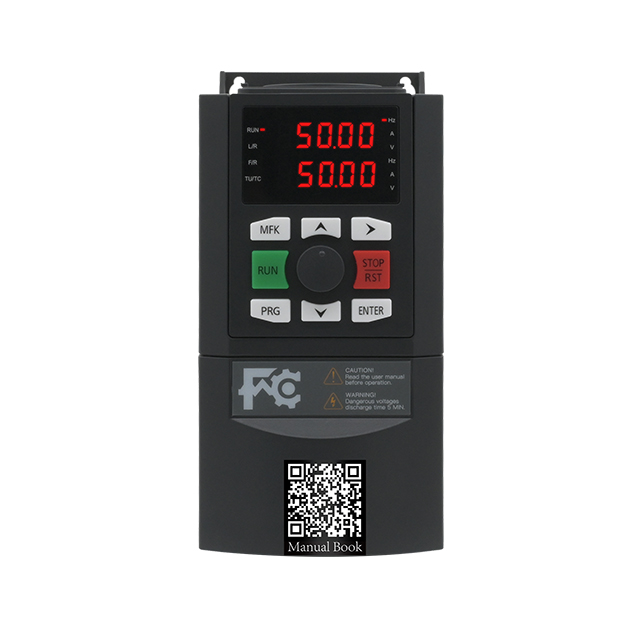

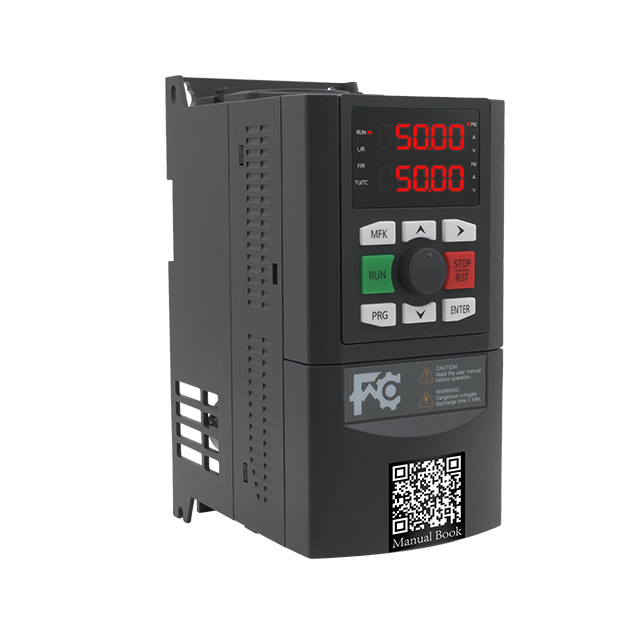

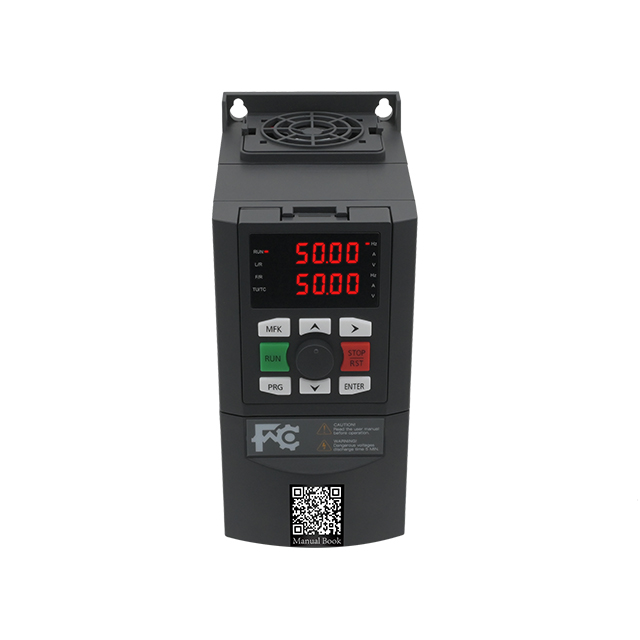

FC300 Series Open Loop Vector General Frequency Inverter

SKU:
Availability:
Quantity:
· Drives Both Motor Types
· High Performance & Durability
· OEM/ODM Customization

Janson Control presents the FC300 a high performance, flexible drive platform built for OEMs and brand owners. More than just an inverter, it's the reliable foundation for your next-generation equipment. The FC300 uniquely drives both permanent magnet synchronous and induction motors. This eliminates design compromise, giving you ultimate flexibility.Advanced Control: Featuring sensorless vector control, it delivers smooth starts, precise speed regulation, and superior load response across all motor types, ensuring reliable performance in diverse industrial applications.
Inquire Add to Basket

  • FC300

  • Janson Controls

Item No.Adaptable Motor (kW)Input Current (A)Output Current (A)Rate Capacity (kVA)W
(mm)		H
(mm)		D
(mm)		W1
(mm)		H1
(mm)		GW
(kg)
                                                       1 Phase Input and 3 Phase Output  220V (-15%~+15% Tolerance)
2S-0.4GB0.46.20 2.1 0.7 90 197 139 74 187 1.50
2S-0.75GB0.758.20 4.0 1.5
2S-1.5GB1.514.04.0 3.0
2S-2.2GB2.223.09.6 4.0
2S-4.0GB435.017.0 11.0 125 243 170 109 226 3.5
2S-5.5GB5.545.025.0 17.0 165 297 206 147 279 6.0
2S-7.5GB7.575.032.0 21.0
2S-11G(B)11100.045.0 30.0 225 360 232 206 342 10.0
2S-15G(B)15130.00 60.0 39.0 260 440 240 220 472 20.0
                                                    3 Phase Input and 3 Phase Output  220V (-15%~+15% Tolerance)
2T-0.4GB0.43.40 2.1 1.5 90 197 139 74 187 1.50
2T-0.75GB0.755.00 3.8 3.0
2T-1.5GB1.55.80 5.1 4.0
2T-2.2GB2.210.50 9.0 5.9
2T-4.0GB420.50 17.0 11.0 102 202 162 90 189 3.0
2T-5.5GB5.526.00 25.0 17.0 125 243 170 109 226 3.5
2T-7.5GB7.535.032.0 21.0
2T-11GB1147.045.0 30.0 165 297 206 147 279 6.0
2T-15G(B)1562.060.0 39.0 225 360 232 206 342 10.0
2T-18.5G(B)18.577.075.0 57.0
2T-22G(B)2292.090.0 69.0 260 440 240 220 472 20.0
2T-30G(B)30113.0 110.0 72.0
2T-37G(B)37156.0152.0 114.0 300 555 280 240 535 33.0
2T-45G(B)45180.0 176.0 134.0 338 580 325 270 560 50.0
2T-55G55214.0210.0 160.0
2T-75G75307.0 304.0 231.0 400 780 350 320 756 75.0
                                             3 Phase Input and 3 Phase Output  380V (-15%~+15% Tolerance)
4T-0.75GB/1.5PB0.75/1.53.4/52.1/3.81.5/390 197 139 74 187 1.50
4T-0.75GB/1.5PB-MO0.75/1.53.4/52.1/3.81.5/3
4T-1.5GB/2.2PB1.5/2.25/5.83.8/5.13/4
4T-1.5GB/2.2PB-MO1.5/2.25/5.83.8/5.13/4
4T-2.2GB/4.0PB2.2/4.05.8/10.55.1/94/5.9
4T-2.2GB/4.0PB-MO2.2/4.05.8/10.55.1/94/5.9
4T-4.0GB/5.5PB4/5.510.5/14.69/135.9/8.9
4T-4.0GB/5.5PB-MO4/5.510.5/14.69/135.9/8.9
4T-5.5GB/7.5PB5.5/7.514.6/1913/178.9/11102 202 162 90 189 3.0
4T-7.5GB/11PB7.5/1119/2817/2511/16
4T-11GB/15PB11/1528/3525/3216/21125 243 170 109 226 3.5
4T-15GB/18.5PB15/18.535/3932/3721/24
4T-18.5GB/22PB18.5/2239/4737/4524/30165 297 206 147 279 6.0
4T-22GB/30PB22/3047/6245/6030/39
4T-30G(B)/37P(B)30/4762/7760/7539/49225 360 232 206 342 10.0
4T-37G(B）37777557
4T-45G(B)/55P(B)45/5592/11390/11059/72260 440 240 220 472 20.0
4T-55G(B)551131107222.0
4T-55G(B)/75P(B)55/75113/156110/15272/114300 555 280 240 535 25.0
4T-75G(B)/90P(B)75/90156/180152/173114/13433.0
4T-90G/110P90/110180/214176/210134/160338 580 325 270 560 50.0
4T-110G/132P110/132214/256210/253160/192
4T-132G/160P132/160256/307253/304192/231400 780 350 320 756 75.0
4T-160G/185P160/185307/345304/340231/236
4T-185G185345.00 340.00 236.00
4T-200G/220P200/220385/430377/426250/280520 355 380 96.0
4T-200G/220P-K200/220385/430377/426250/2801120 //104.0
4T-220G/250P220/250430/468426/465280/355780 380 756 96.0
4T-220G/250P-K220/250430/468426/465280/3551120 //104.0
4T-250G/280P250/280468/525465/520355/396620 880 370 480 848 121.0
4T-250G/280P-K250/280468/525465/520355/3961280 //133.0
4T-280G/315P280/315525/590520/585396/445880 480 848 121.0
4T-280G/315P-K280/315525/590520/585396/4451280 //133.0
4T-315G/355P315/355590/665585/650445/500780 1350 394 620 1320 240.0
4T-315G/355P-K315/355590/665585/650445/5001690 //250.0
4T-355G/400P355/400665/785650/725500/5651350 620 1320 240.0
4T-355G/400P-K355/400665/785650/725500/5651690 //250.0
4T-400G/450P400/450785/883725/820565/6301350 620 1320 255.0
4T-400G/450P-K400/450785/883725/820565/6301690 //265.0
4T-450G450883.00 820.00 630.00 1350 620 1320 255.0
4T-450G-K450883.00 820.00 630.00 1690 //265.0



Electrical Specification
Input voltageSingle phase/three phase 200-240V,three phase 380~440V
Fluctuate no more than±10%,Imbalance rate<3%.
Input frequency50/60Hz±5%
Output voltage0V~Input voltage
Output frequencyVector control:0~500Hz
V/F control:0~3200Hz
Performance
Overload capacity150% rated output current for 1 minute, 180% rated output
current for 2 seconds.
Control methodOpen-loop vector control (SVC), V/F control.
Run command setting methodOperation Panel Setting,External Terminal
Setting,Communication Setting.
Speed setting methodDigital setting, analog setting/pulse setting, communication
setting.
Speed setting resolutionDigital setting: 0.01Hz, Analog setting: 1% × maximum
frequency.
Speed control accuracySVC:±0.5%
Speed control rangeSVC:1:100
Torque control responseSVC:<200ms
Starting torqueSVC:150% rated torque/0.5Hz
Special Feature
Programmable input & Output
terminals		Input & Output terminal function can be edited
Process PID adjustment functionBuilt-in process PID module
Simple PLC functionBuilt-in simple PLC module, which can realize timing and multi-
segment frequency output.
Textile wobble functionBuilt-in textile swing frequency function module
Water supply functionBuilt-in constant pressure water supply parameter macro
Fire modeBuilt-in European fire mode parameter set
Protective Function
Overvoltage stallBus voltage automatic control to prevent overvoltage fault
Automatic current limiting protectionOutput current is automatically limited to prevent over-current faults
Overload Pre-alarm & AlarmOverload Pre-warning and protection
Output phase loss protectionOutput phase loss automatic detection and alarm function
Overvoltage & Overflow stall controlAutomatically limit current and voltage during operation to
prevent frequent over-current and over-voltage tripping
Output short-to-ground protectionEffective protection function for output short circuit to ground
Output phase-to-phase short circuit
protection		Output interphase short circuit effective protection function
Input & Output
External analog power supply+10V-GND
External digital power supply24V-COM
Analog InputAI1:Voltage 0~10V/0-20mA
AI2:Voltage -10~+10V/0-20mA
Analog outputAO1:0~10V/0~20mA (Voltage/Current Optional)
AO2:0~10V/0~20mA (Voltage/Current Optional)
Digital inputDI1~DI5 (can be selected as a high-speed pulse signal)
Digital outputFM、AO2 ，FM can be selected as high-frequency pulse signal output.
Relay outputTA/TB/TC:Contact rating 250VAC/3A or 30VDC/1A
MODBUS communicationA+、B-
Operation Display
LED displaySet frequency, output frequency, output voltage, output current,motor speed, Output torque, digital terminals, status parameters,programming menu parameters and fault codes etc.
Indicator light3 unit indicators, 4 status indicators.
Environmental Characteristics
Working temperature-10~+40℃ ,Maximum temperature is 50℃ ,air temperature
change is less than 0.5℃ /min,40~50℃ derating is required,output current derating 2% for each 1℃ .
Storage environment temperature-40~+70℃
ApplicationIndoor,free from direct sunlight,dust,corrosive gas,flammable gas,oil mist,water vapor,dripping water or salt etc.
AltitudeLess than 1000 meters,derating is required for more than 1000 meters.
HumidityLess than 95%RH,no condensation.
Vibration resistance3.5m/s² at 2~9Hz,10m/s² at 9~200Hz(IEC60721-3-3).
Protection degreeIP20
Pollution levelClass 2 (Dry,non-conductive dust pollution)



Customization & ODM Capabilities

More Than a Standard Product. It's Your Custom Starting Point
This platform is designed for adaptation and supports:
Software Tailoring
Modify parameters and develop specialized functions.
Hardware Adaptation
Adjust mechanical design and swap key components.
Complete Branding
Apply your logo and packaging seamlessly.

Related Products

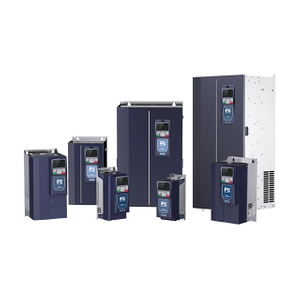

FC290 Series Open Loop Vector General Frequency Inverter
