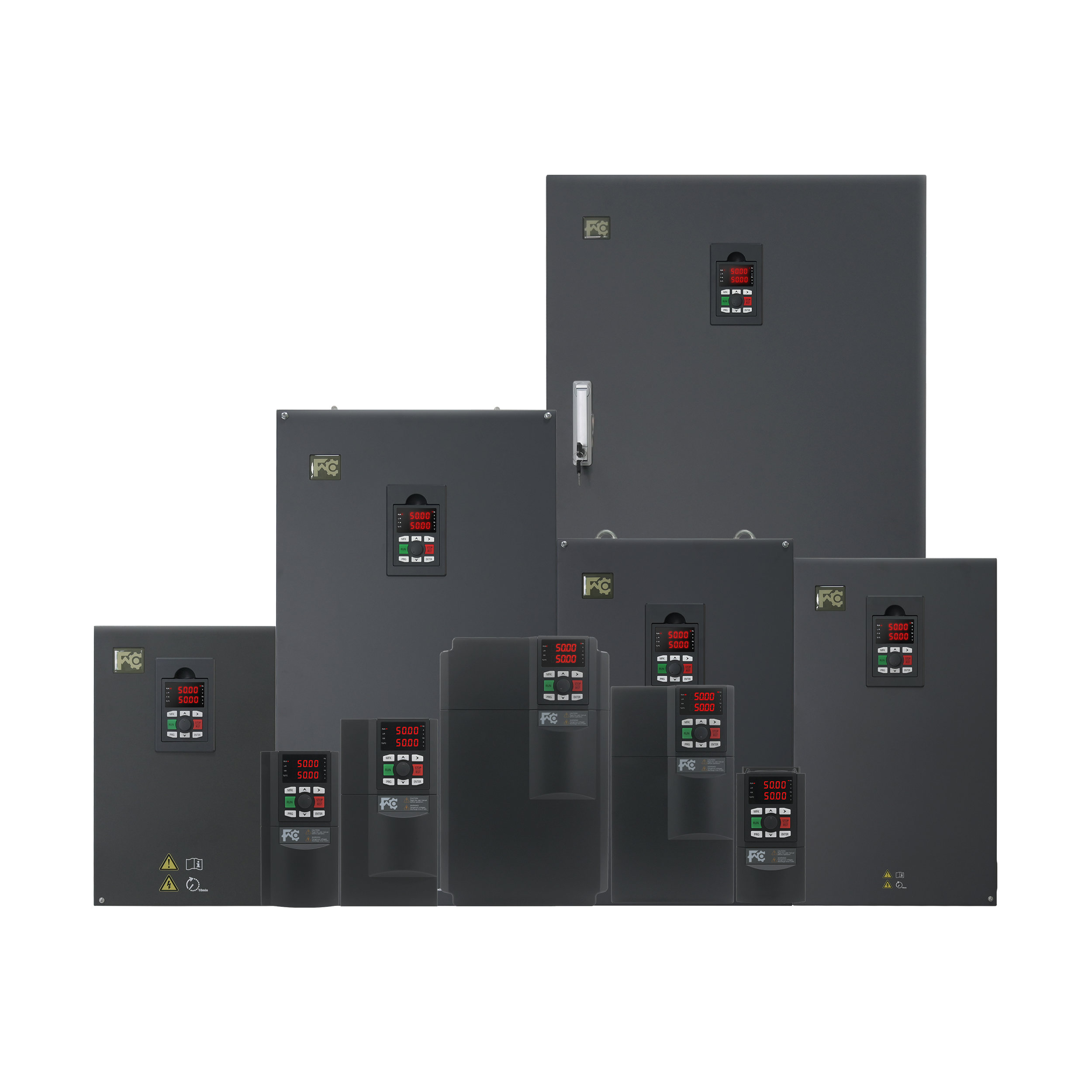

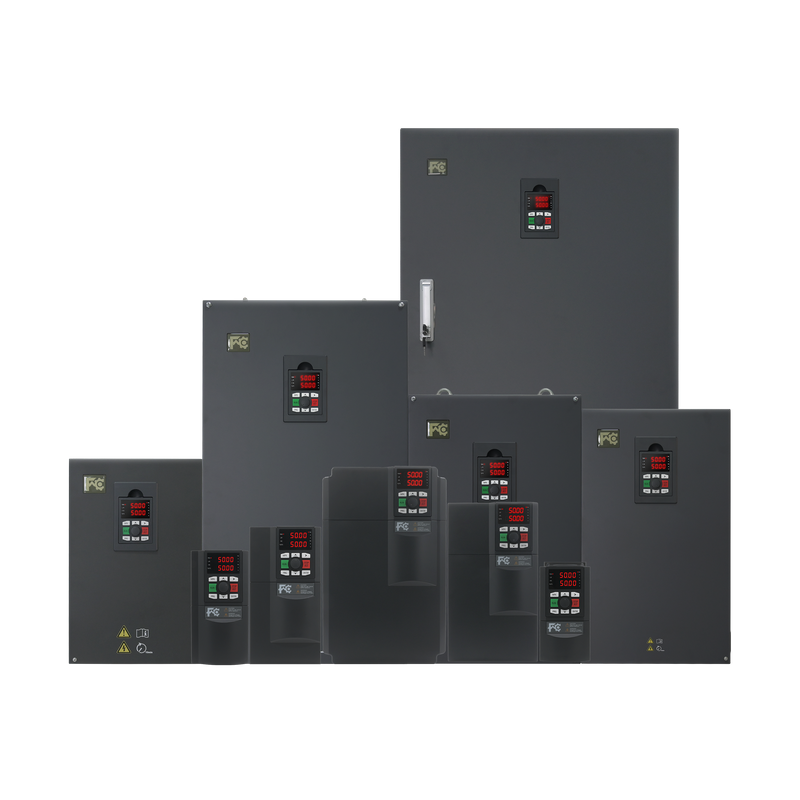

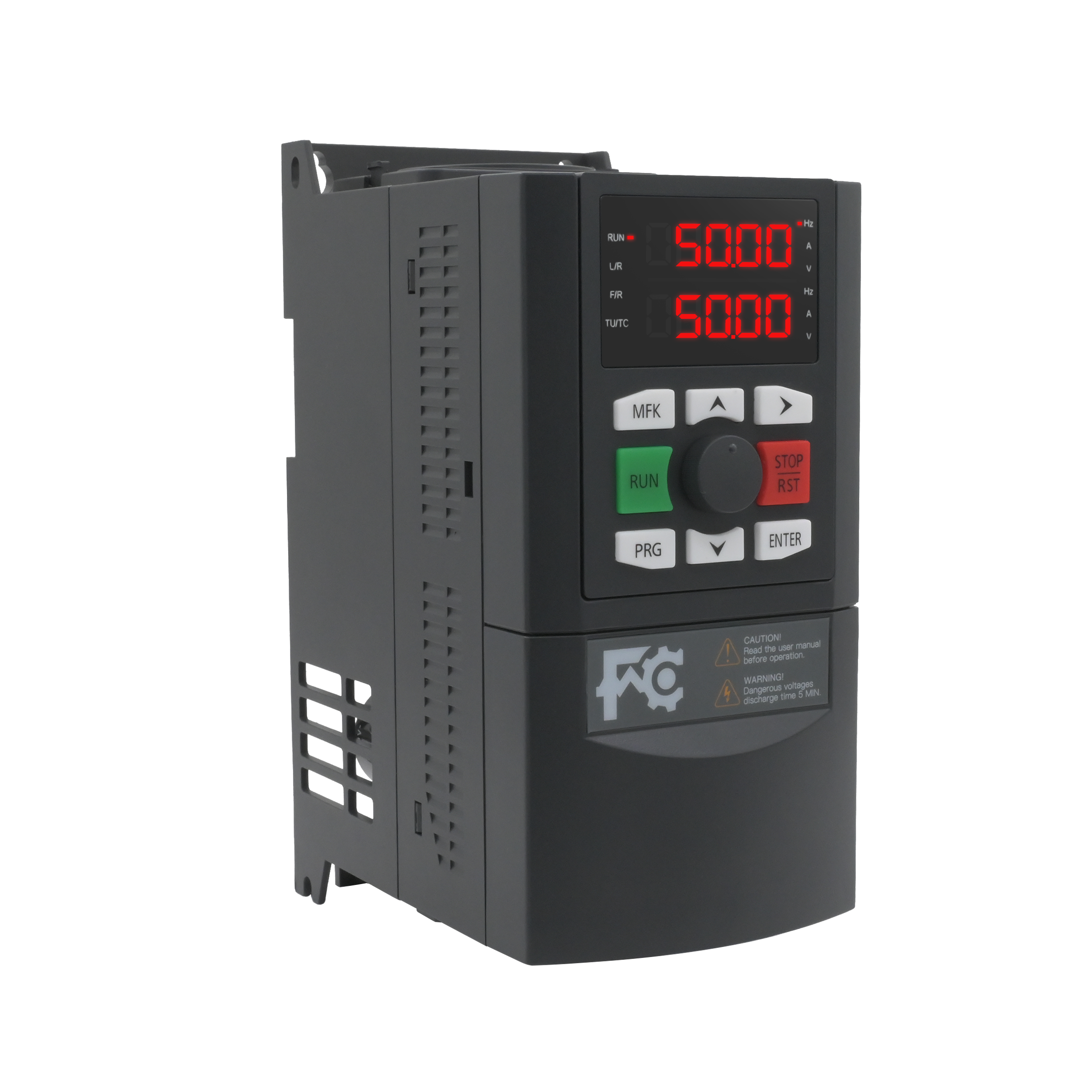

FC200
JANSON CONTROLS
High Starting Torque: 150% @ 0.5Hz, strong low frequency starting performance.
Flexible Control Mode: Enhanced vector control, supports open-loop vector control and V/F control, meeting the needs of different application scenarios.
Wide Voltage Input: 323-506V, super overload capacity (150% rated load for 1 minute), adaptable to complex power grid environment.
Reliable Hardware: The new generation IGBT hardware platform is equipped with an independent air duct design to ensure long-term stable operation.
High Cost-Performance Ratio: Supports driving permanent magnet synchronous motors and asynchronous motors
Rich Functions: Multi-function terminals (5DI, 2DO, 2AI, 2AO, 2relay), built-in adaptive PID module, support a variety of application scenarios.
Multiple Protections: Multiple protection mechanisms and flexible fault handling ensure safe and stable operation of the equipment.
Compact Structure: compact design, V/ F separation operation, automatic voltage compensation, to meet the needs of the power supply industry.
Advanced Functions: speed tracking, improved braking scheme, low-frequency dead zone compensation, oscillation suppression, and improved operation stability.
Product Selection
| Item No. | Adaptable Motor (kW) | Input Current (A) | Output Current (A) | Rate Capacity (kVA) | W (mm) | H (mm) | D (mm) | W1 (mm) | H1 (mm) | GW (kg) |
| 1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||
| FC200-2S-0.4GB | 0.4 | 6.2 | 2.1 | 0.7 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2S-0.75GB | 0.75 | 8.2 | 4.0 | 1.5 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2S-1.5GB | 1.5 | 14.0 | 7.0 | 3.0 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2S-2.2GB | 2.2 | 23.0 | 9.6 | 4.0 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2S-4.0GB | 4 | 35 | 17 | 11 | 125 | 243 | 170 | 109 | 226 | 3.5 |
| FC200-2S-5.5GB | 5.5 | 45 | 25 | 17 | 165 | 297 | 206 | 147 | 279 | 6 |
| FC200-2S-7.5GB | 7.5 | 75 | 32 | 21 | 165 | 297 | 206 | 147 | 279 | 6 |
| FC200-2S-11G(B) | 11 | 100 | 45 | 30 | 225 | 360 | 232 | 206 | 342 | 10 |
| FC200-2S-15G(B) | 15 | 130 | 60 | 39 | 260 | 440 | 240 | 220 | 472 | 20 |
| 3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||
| FC200-2T-0.4GB | 0.4 | 3.4 | 2.1 | 1.5 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2T-0.75GB | 0.75 | 5.0 | 3.8 | 3.0 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2T-1.5GB | 1.5 | 5.8 | 5.1 | 4.0 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2T-2.2GB | 2.2 | 10.5 | 9.0 | 5.9 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-2T-4.0GB | 4 | 20.5 | 17.0 | 11.0 | 102 | 202 | 162 | 90 | 189 | 3.0 |
| FC200-2T-5.5GB | 5.5 | 26 | 25 | 17 | 125 | 243 | 170 | 109 | 226 | 3.5 |
| FC200-2T-7.5GB | 7.5 | 35 | 32 | 21 | 125 | 243 | 170 | 109 | 226 | 3.5 |
| FC200-2T-11GB | 11 | 47 | 45 | 30 | 165 | 297 | 206 | 147 | 279 | 6 |
| FC200-2T-15G(B) | 15 | 62 | 60 | 39 | 225 | 360 | 232 | 206 | 342 | 10 |
| FC200-2T-18.5G(B) | 18.5 | 77 | 75 | 57 | 225 | 360 | 232 | 206 | 342 | 10 |
| FC200-2T-22G(B) | 22 | 92 | 90 | 69 | 260 | 440 | 240 | 220 | 472 | 20 |
| FC200-2T-30G(B) | 30 | 113 | 110 | 72 | 260 | 440 | 240 | 220 | 472 | 20 |
| FC200-2T-37G(B) | 37 | 156 | 152 | 114 | 300 | 555 | 280 | 240 | 535 | 33 |
| FC200-2T-45G(B) | 45 | 180 | 176 | 134 | 338 | 580 | 325 | 270 | 560 | 50 |
| FC200-2T-55G | 55 | 214 | 210 | 160 | 338 | 580 | 325 | 270 | 560 | 50 |
| FC200-2T-75G | 75 | 307 | 304 | 231 | 400 | 780 | 350 | 320 | 756 | 75 |
| 3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||
| FC200-4T-0.75GB/1.5PB | 0.75/1.5 | 3.4/5 | 2.1/3.8 | 1.5/3 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-4T-1.5GB/2.2PB | 1.5/2.2 | 5/5.8 | 3.8/5.1 | 3/4 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-4T-2.2GB/4.0PB | 2.2/4.0 | 5.8/10.5 | 5.1/9 | 4/5.9 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-4T-4.0GB/5.5PB | 4/5.5 | 10.5/14.6 | 9/13 | 5.9/8.9 | 90 | 197 | 139 | 74 | 187 | 1.5 |
| FC200-4T-5.5GB/7.5PB | 5.5/7.5 | 14.6/19 | 13/17 | 8.9/11 | 102 | 202 | 162 | 90 | 189 | 3.0 |
| FC200-4T-7.5GB/11PB | 7.5/11 | 19/28 | 17/25 | 11/16 | 102 | 202 | 162 | 90 | 189 | 3.0 |
| FC200-4T-11GB/15PB | 11/15 | 28/35 | 25/32 | 16/21 | 125 | 243 | 170 | 109 | 226 | 3.5 |
| FC200-4T-15GB/18.5PB | 15/18.5 | 35/39 | 32/37 | 21/24 | 125 | 243 | 170 | 109 | 226 | 3.5 |
| FC200-4T-18.5GB/22PB | 18.5/22 | 39/47 | 37/45 | 24/30 | 165 | 297 | 206 | 147 | 279 | 6.0 |
| FC200-4T-22GB/30PB | 22/30 | 47/62 | 45/60 | 30/39 | 165 | 297 | 206 | 147 | 279 | 6.0 |
| FC200-4T-30G(B)/37P(B) | 30/47 | 62/77 | 60/75 | 39/49 | 225 | 360 | 232 | 206 | 342 | 10 |
| FC200-4T-37G(B） | 37 | 77 | 75 | 57 | 225 | 360 | 232 | 206 | 342 | 10 |
| FC200-4T-45G(B)/55P(B) | 45/55 | 92/113 | 90/110 | 59/72 | 260 | 440 | 240 | 220 | 472 | 20 |
| FC200-4T-55G(B) | 55 | 113 | 110 | 72 | 260 | 440 | 240 | 220 | 472 | 22 |
| FC200-4T-55G(B)/75P(B) | 55/75 | 113/156 | 110/152 | 72/114 | 300 | 555 | 280 | 240 | 535 | 25 |
| FC200-4T-75G(B)/90P(B) | 75/90 | 156/180 | 152/173 | 114/134 | 300 | 555 | 280 | 240 | 535 | 33 |
| FC200-4T-90G/110P | 90/110 | 180/214 | 176/210 | 134/160 | 338 | 580 | 325 | 270 | 560 | 50 |
| FC200-4T-110G/132P | 110/132 | 214/256 | 210/253 | 160/192 | 338 | 580 | 325 | 270 | 560 | 50 |
| FC200-4T-132G/160P | 132/160 | 256/307 | 253/304 | 192/231 | 400 | 780 | 350 | 320 | 756 | 75 |
| FC200-4T-160G/185P | 160/185 | 307/345 | 304/340 | 231/236 | 400 | 780 | 350 | 320 | 756 | 75 |
| FC200-4T-185G | 185 | 345.00 | 340.00 | 236.00 | 400 | 780 | 350 | 320 | 756 | 75 |
| FC200-4T-200G/220P | 200/220 | 385/430 | 377/426 | 250/280 | 520 | 780 | 355 | 380 | 756 | 96 |
| FC200-4T-200G/220P-K | 200/220 | 385/430 | 377/426 | 250/280 | 520 | 1120 | 355 | / | / | 104 |
| FC200-4T-220G/250P | 220/250 | 430/468 | 426/465 | 280/355 | 520 | 780 | 355 | 380 | 756 | 96 |
| FC200-4T-220G/250P-K | 220/250 | 430/468 | 426/465 | 280/355 | 520 | 1120 | 355 | / | / | 104 |
| FC200-4T-250G/280P | 250/280 | 468/525 | 465/520 | 355/396 | 620 | 880 | 370 | 480 | 848 | 121 |
| FC200-4T-250G/280P-K | 250/280 | 468/525 | 465/520 | 355/396 | 620 | 1280 | 370 | / | / | 133 |
| FC200-4T-280G/315P | 280/315 | 525/590 | 520/585 | 396/445 | 620 | 880 | 370 | 480 | 848 | 121 |
| FC200-4T-280G/315P-K | 280/315 | 525/590 | 520/585 | 396/445 | 620 | 1280 | 370 | / | / | 133 |
| FC200-4T-315G/355P | 315/355 | 590/665 | 585/650 | 445/500 | 780 | 1350 | 394 | 620 | 1320 | 240 |
| FC200-4T-315G/355P-K | 315/355 | 590/665 | 585/650 | 445/500 | 780 | 1690 | 394 | / | / | 250 |
| FC200-4T-355G/400P | 355/400 | 665/785 | 650/725 | 500/565 | 780 | 1350 | 394 | 620 | 1320 | 240 |
| FC200-4T-355G/400P-K | 355/400 | 665/785 | 650/725 | 500/565 | 780 | 1690 | 394 | / | / | 250 |
| FC200-4T-400G/450P | 400/450 | 785/883 | 725/820 | 565/630 | 780 | 1350 | 394 | 620 | 1320 | 255 |
| FC200-4T-400G/450P-K | 400/450 | 785/883 | 725/820 | 565/630 | 780 | 1690 | 394 | / | / | 265 |
| FC200-4T-450G | 450 | 883.00 | 820.00 | 630.00 | 780 | 1350 | 394 | 620 | 1320 | 255 |
| FC200-4T-450G-K | 450 | 883.00 | 820.00 | 630.00 | 780 | 1690 | 394 | / | / | 265 |
| FC200-KBE | ||||||||||
Technical Parameter
| Electrical Specification | |
| Input Voltage | Single Phase/Three Phase 200-240V, Three Phase 380-440V Fluctuate no more than±10%，Imbalance Rate <3% |
| Input Frequency | 50/60Hz ± 5% |
| Output Voltage | 0V ~ Input Voltage |
| Output Frequency | Vector Control：0 ～300Hz |
| V/F Control：0 ～500Hz | |
| Performance | |
| Overload Capacity | 150% rated output current for 1 minute, 180% rated output current for 2 seconds |
| Control Method | Open-loop vector control (SVC), V/F control |
| Run Command Setting Method | Operation Panel Setting、 External Terminal Setting、Communication Setting. |
| Speed Setting Method | Digital setting, analog setting/pulse setting, communication setting. |
| Speed Setting Resolution | Digital setting: 0.01Hz, Analog setting: 1% X maximum frequency |
| Speed Control Accuracy | SVC：±0.5% |
| Speed Control Range | SVC：1:100 |
| Torque Control Response | SVC：<200ms |
| Starting Torque | SVC：150% rated torque/0.5Hz |
| Special Feature | |
| Programmable Input & Output Terminals | Input& Output terminal function can be edited |
| Process PID Adjustment Function | Built-in process PID module |
| Simple PLC Function | Built-in simple PLC module, which can realize timing and multi-segment frequency output |
| Textile Wobble Function | Built-in textile swing frequency function module |
| Water Supply Function | Built-in constant pressure water supply parameter macro |
| Engraving Machine Function | Built-in engraving machine high frequency parameter macro |
| Fire Mode | Built-in European fire mode parameter set |
| Protective Function | |
| Overvoltage Stall | Bus voltage automatic control to prevent overvoltage fault |
| Automatic Current Limiting Protection | Output current is automatically limited to prevent over-current faults |
| Overload Pre-Alarm & Alarm | Overload Pre-warning and protection |
| Output Phase Loss Protection | Output phase loss automatic detection and alarm function |
| Overvoltage & Overflow Stall Control | Automatically limit current and voltage during operation to prevent frequent over-current and over-voltage tripping |
| Output Short-to-Ground Protection | Effective protection function for output short circuit to ground |
| Output Phase-to-Phase Short Circuit Protection | Output interphase short circuit effective protection function |
| Input & Output | |
| External analog power supply | +10V-GND |
| External digital power supply | 24V-COM |
| Analog Input | AI1：Voltage 0~10V/0-20mA |
| AI2：Voltage 0~10V/0-20mA | |
| Analog Output | AO1：0~10V/0~20mA（Voltage/Current Optional） |
| AO2：0~10V/0~20mA（Voltage/Current Optional） | |
| Digital Input | DI1－DI5（can be selected as a high-speed pulse signal） |
| Digital Output | FM、AO2，FM can be selected as high-frequency pulse signal output |
| Relay output | TA/TB/TC：Contact rating 250VAC/3A or 30VDC/1A |
| MODBUS Communication | A+、B- |
| Operation Display | |
| LED Display | Set frequency, output frequency, output voltage, output current, motor speed, Output torque, digital terminals, status parameters, programming menu parameters and fault codes etc |
| Indicator Light | 3 unit indicators, 4 status indicators |
| Environmental Characteristics | |
| Working Temperature | -10~+40℃, Maximum temperature is 50°C, Air Temperature change is less than 0.5°C/min,40－50℃ Derating is required, output current derating 2% for each 1℃ |
| Storage Environment Temperature | -40~+70℃ |
| Application | Indoor, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt etc. |
| Altitude | Less than 1000 meters, derating is required for more than 1000 meters |
| Humidity | Less than 95%RH, no condensation |
| Vibration resistance | 3.5m/s² at 2-9Hz, 10m/s² at 9-200Hz (IEC60721-3-3) |
| Protection Degree | IP20 |
| Pollution Level | Class 2 (dry, non-conductive dust pollution) |
| Certification | |
| CE | The whole series has passed CE certification |
