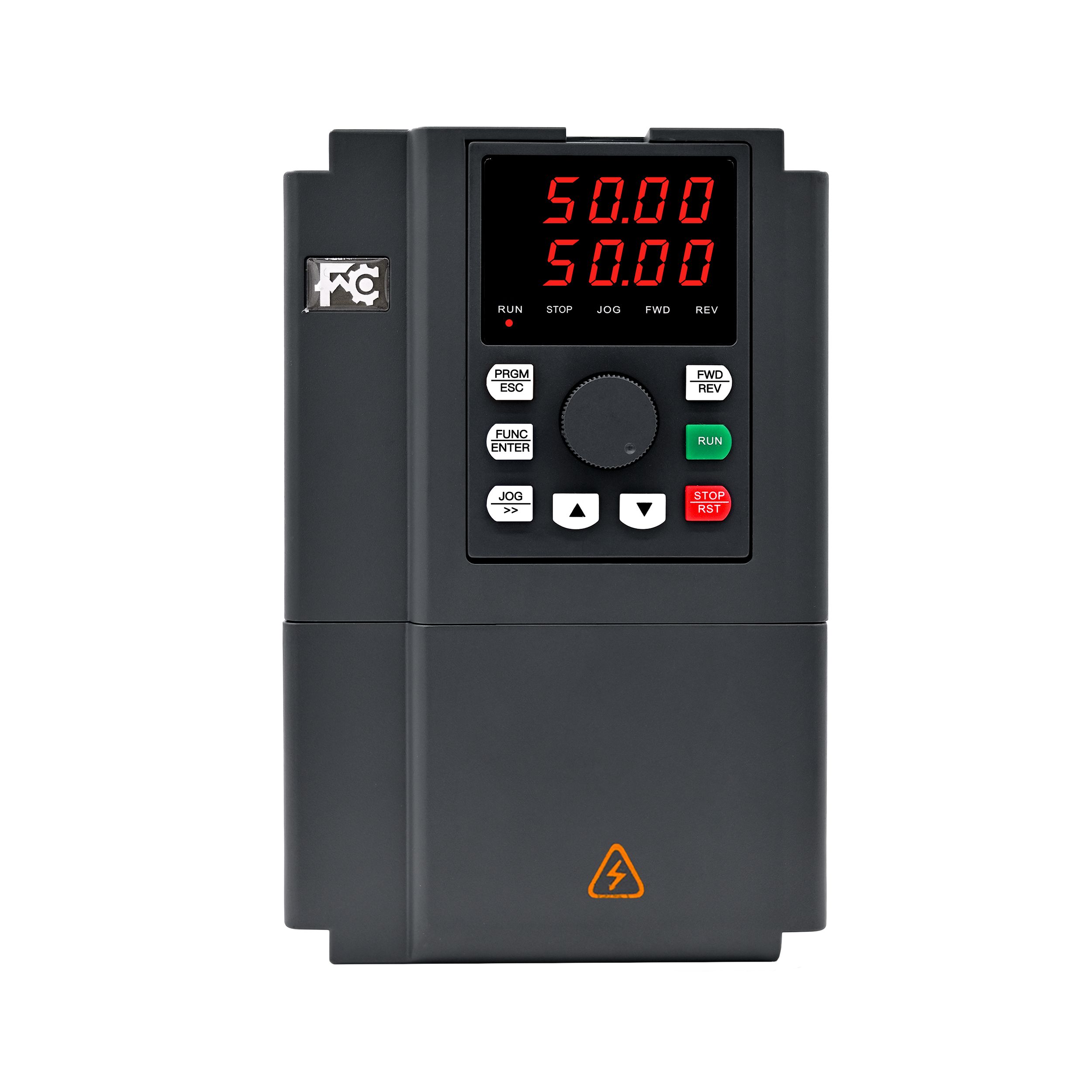

FC280
JANSON CONTROLS
Product Feature
Three control modes: V/F control, open-loop vector control and closed-loop vector control are provided to meet the needs of different application scenarios.
High-end application adaptation: Suitable for high-end places such as high precision, fast response, large torque, large inertia and potential load.
Intelligent adjustment function: It has the function of automatically adjusting the carrier frequency to ensure more stable and reliable operation; the automatic voltage adjustment function effectively solves the low-frequency oscillation problem of high-power motors
Smooth start and restart: With speed tracking and restart functions, it can realize smooth start of rotating motors and avoid impact.
Built-in brake unit: 0.75kW to 22kW built-in brake unit, high cost performance.
Ultra-low speed and large starting torque: Under closed-loop vector control, 150% rated torque can be output at zero speed, achieving ultra-low speed and large starting torque.
Multi-function and convenience: Multi-function input and output terminals, multi-function analog input and output and serial communication functions bring many conveniences to users.
Product Selection
| Item No. | Adaptable Motor (kW) | Input Current (A) | Output Current (A) | Rate Capacity (kVA) | W (mm) | H (mm) | D (mm) | W1 (mm) | H1 (mm) | GW (kg) |
| 3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||
| FC280-4T-0.75GB/1.5PB | 0.75/1.5 | 3.4/5.0 | 2.1/3.8 | 1.5/3.0 | 118 | 185 | 157 | 106 | 175 | 2.47 |
| FC280-4T-1.5GB/2.2PB | 1.5/2.2 | 5.0/5.8 | 3.8/5.1 | 3.0/4.0 | 118 | 185 | 157 | 106 | 175 | 2.53 |
| FC280-4T-2.2GB/3.0PB | 2.2/3.0 | 5.8/8.0 | 5.1/6.8 | 4.0/4.9 | 160 | 247 | 177 | 148 | 235 | 2.7 |
| FC280-4T-3.0GB/4.0PB | 3.0/4.0 | 8.0/10.5 | 6.8/9.0 | 4.9/5.9 | 160 | 247 | 177 | 148 | 235 | 2.7 |
| FC280-4T-4.0GB/5.5PB | 4.0/5.5 | 10.5/14.6 | 9/13 | 5.9/8.9 | 160 | 247 | 177 | 148 | 235 | 2.7 |
| FC280-4T-5.5GB/7.5PB | 5.5/7.5 | 14.6/20.5 | 13/17 | 8.9/11 | 160 | 247 | 177 | 148 | 235 | 4.6 |
| FC280-4T-7.5GB/11PB | 7.5/11 | 20.5/26 | 17/25 | 11/17 | 160 | 247 | 177 | 148 | 235 | 4.83 |
| FC280-4T-11GB/15PB | 11/15 | 26/35 | 25/32 | 17/21.0 | 160 | 247 | 177 | 148 | 235 | 5.18 |
| FC280-4T-15GB/18.5PB | 15/18.5 | 35/38.5 | 32/37 | 21/24.0 | 220 | 321 | 198 | 205 | 305 | 7.94 |
| FC280-4T-18.5GB/22PB | 18.5/22 | 38.5/46.5 | 37/45 | 24/30.0 | 220 | 321 | 198 | 205 | 305 | 8.80 |
| FC280-4T-22GB/30PB | 22/30 | 46.5/62 | 45/60 | 30/40.0 | 220 | 321 | 198 | 205 | 305 | 8.91 |
| FC280-4T-30G/37P(B) | 30/37 | 62/76 | 60/75 | 40/57.0 | 250 | 426 | 210 | 210 | 410 | 14.6 |
| FC280-4T-37G/45P(B) | 37/45 | 76/92 | 75/91 | 57/69.0 | 250 | 426 | 210 | 210 | 410 | 14.6 |
| FC280-4T-45G/55P(B) | 45/55 | 92/113 | 91.0/112 | 69/85.0 | 300 | 492 | 236 | 266 | 473 | 19.5 |
| FC280-4T-55G/75P(B) | 55/75 | 113/157 | 112/150 | 85/114 | 300 | 492 | 236 | 266 | 473 | 19.8 |
| FC280-4T-75G/90P(B) | 75/90 | 157/180 | 150/176 | 114/134 | 320 | 555 | 230 | 230 | 536 | 26.5 |
| FC280-4T-90G/110P(B) | 90/110 | 180/214 | 176/210 | 134/160 | 410 | 634 | 240 | 320 | 611 | 48.3 |
| FC280-4T-110G/132P(B) | 110/132 | 214/256 | 210/253 | 160/192 | 410 | 634 | 240 | 320 | 611 | 49 |
| FC280-4T-132G/160P | 132/160 | 256/307 | 253/304 | 192/231 | 475 | 692 | 347 | 320 | 669 | 72.4 |
| FC280-4T-160G/185P | 160/185 | 307/340 | 304/330 | 231/236 | 475 | 692 | 347 | 320 | 669 | 73.5 |
| FC280-4T-185G/200P | 185/200 | 340/385 | 330/377 | 236/250 | 420 | 790 | 366 | 310 | 764 | 80 |
| FC280-4T-200G/220P | 200/220 | 385/430 | 377/426 | 250/280 | 420 | 790 | 366 | 310 | 764 | 80 |
| FC280-4T-220G/250P | 220/250 | 430/468 | 426/465 | 280/355 | 490 | 810 | 370 | 360 | 785 | 93.5 |
| FC280-4T-250G/280P | 250/280 | 468/525 | 465/520 | 355/396 | 490 | 1110 | 370 | 360 | 1085 | 126 |
| FC280-4T-280G/315P | 280/315 | 525/590 | 520/585 | 396/445 | 650 | 1190 | 370 | 520 | 1159 | 164 |
| FC280-4T-315G/355P | 315/355 | 590/665 | 585/650 | 445/500 | 650 | 1190 | 370 | 520 | 1159 | 165 |
| FC280-4T-355G/400P | 355/400 | 665/785 | 650/725 | 500/565 | 650 | 1190 | 370 | 520 | 1159 | 166 |
| FC280-4T-400G/450P | 400/450 | 785/883 | 725/820 | 565/630 | 650 | 1190 | 370 | 520 | 1159 | 167 |
Technical Parameter
| Power Input | |
| Input voltage | 1AC 220V±15%, 3AC 220V±15%,3AC 380V±15%. |
| Input frequency | 47～63Hz |
| Power factor | ≥95% |
| Control Performance | |
| Control mode | V/F control, non-PG vector control(SVC)，PG vector control (FVC). |
| V/F control | Line, multiple point , square V/F curve, V/F separation. |
| Operation command mode | Keypad control, Terminal control, Serial communic-ation control. |
| Frequency reference source | Digital,analog,pulse frequency,serial communication, multistep speed,simple PLC and PID The combinaton of multimodes and the different modes can be switched. |
| Overload capacity | G type:150% rated current 60s,180% rated current 3s. |
| P type:120% rated current 60s,150% rated current 3s. | |
| Start torque | G type:0.5Hz/150%(SVC),0Hz/180%(FVC). |
| P type:0.5Hz/100% | |
| Speed adjusting range | 1:100(SVC) 1:1000(FVC) |
| Speed control accuracy | ±0.5%(SVC)±0.02%(FVC) |
| Carrier frequency | 0.5 to 16.0 kHz;automatically adjust carrier frequency according to the load characteristics |
| Frequency resolution | Digital setting:0.01Hz.Anolog setting:maximum frequency x 0.00025 |
| Torque boost | Automatic torque boost;manual torque boost 0.1~30% |
| Acceleration and deceleration mode | Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0 s |
| DC brake | Supports starting and stopping DC brake |
| Jogging control | Jog frequency range:0.0Hz~50.00Hz ;Jog Acc/Dec time:0~6500.0s |
| Simple PLC & multi step speed operation | Built-in PLC o rcontrol terminal , 1~6steps speed can be set. |
| Built-in PID | Built-in PID control to easily realize the close loop control for the process parameters (such as pressure, temperature,flow, etc. |
| Automatic voltage regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity grid changes |
| Common DC bus | Common DC bus function:multipl einverters can use a common DC bus |
| Traverse control | Traverse control function:multiple triangular pulse frequency control |
| Fixed length control | Setting length control |
| Timing control | Setting time range：0~6500min |
| Main Control | |
| Input terminals | 6 programmable digital inputs,it can be extended to 4 digital inputs,one of which supports high speed pulse input; 1 analog volatge input 0~10VDC; 2 volatge input 0~10VDC or current input 0~20mA. |
| Output terminals | 1 open collector output ,it can be extened to 1 high speed pulse output ; 2 relay outputs ; 2 analog output: volatge output 0~10VDC or current output 0~20mA. |
| Human Machine Interface | |
| LED display | Can display setting frequency, output frequency, output voltage, output current, etc. |
| Enviorment & Protectionclass | |
| Protection class | IP20 |
| Humidity & temperature | 90%RH or less (no-condensation), -10℃～ +40℃.Inverter will be derated if ambien temperature exceeds 40℃. |
| Vibration | Under 20 Hz 9.8m/s(1G),Over 20Hz 5.88m/s(0.6G). |
| Store environment | ≤1000M,indoor(no corrosive gas and liquid). |
| Store temperature | -20℃～60℃ |
| Cooling mode | Forced air cooling |
