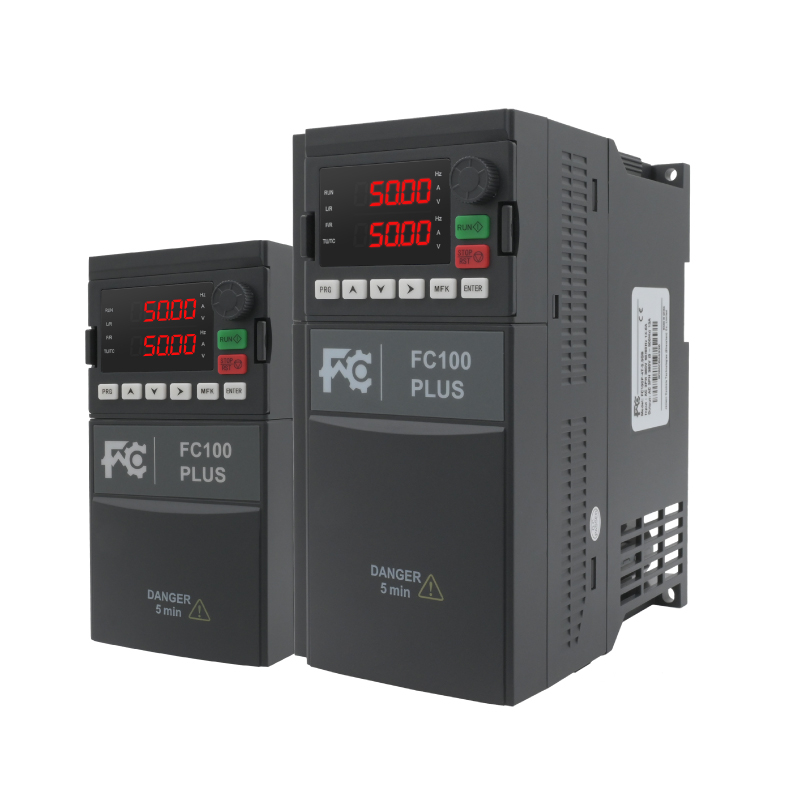

FC100P Series Open loop vector general purpose AC drive

FC100P Series Open loop vector general AC drive

SKU:
Availability:

Quantity:



FC100P is a new general-purpose inverter developed by Janson Controls. Integrate the top technology in the industry with rich functions, convenient operation, and compact structure, and meet international mainstream standards and certifications.
Inquire Add to Basket

Model:
FC100P
Brand:
Janson Controls

High Starting Torque: 150% @ 0.5Hz, strong low frequency starting performance.

Flexible Control Mode: Enhanced vector control, supports open-loop vector control and V/F control, meeting the needs of different application scenarios.

Wide Voltage Input: 323-506V, super overload capacity (150% rated load for 1 minute), adaptable to complex power grid environment.

Reliable Hardware: The new generation IGBT hardware platform is equipped with an independent air duct design to ensure long-term stable operation.

High Cost-Performance Ratio: Supports driving permanent magnet synchronous motors and asynchronous motors

Rich Functions: Multi-function terminals (5DI, 2DO, 2AI, 2AO, 2relay), built-in adaptive PID module, support a variety of application scenarios.

Multiple Protections: Multiple protection mechanisms and flexible fault handling ensure safe and stable operation of the equipment.

Compact Structure: compact design, V/ F separation operation, automatic voltage compensation, to meet the needs of the power supply industry.

Advanced Functions: speed tracking, improved braking scheme, low-frequency dead zone compensation, oscillation suppression, and improved operation stability.

Item No.	Adaptable Motor (kW)	Input Current (A)	Output Current (A)	Rate Capacity (kVA)	W (mm）	H (mm）	D (mm）	W1 (mm）	H1 (mm)	GW (kg)
1/3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2S-0.4GB	0.4	6.2	2.1	0.7	90	197	139	74	187	1.5
FC100P-2S-0.75GB	0.75	8.2	4	1.5
FC100P-2S-1.5GB	1.5	14	7	3
FC100P-2S-2.2GB	2.2	23	9.6	4
FC100P-2S-4.0GB	4	35	17	11	125	243	170	109	226	3.5
FC100P-2S-5.5GB	5.5	45	25	17	165	297	206	147	279	6
FC100P-2S-7.5GB	7.5	75	32	21	165	297	206	147	279	6
FC100P-2S-11G(B)	11	100	45	30	225	360	232	206	342	10
FC100P-2S-15G(B)	15	130	60	39	260	440	240	220	472	20
3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2T-0.4GB	0.4	3.4	2.1	1.5	90	197	139	74	187	1.5
FC100P-2T-0.75GB	0.75	5.0	3.8	3.0
FC100P-2T-1.5GB	1.5	5.8	5.1	4.0
FC100P-2T-2.2GB	2.2	10.5	9.0	5.9
FC100P-2T-4.0GB	4	20.5	17	11	102	202	162	90	189	3
FC100P-2T-5.5GB	5.5	26	25	17	125	243	170	109	226	3.5
FC100P-2T-7.5GB	7.5	35	32	21	125	243	170	109	226	3.5
FC100P-2T-11GB	11	47	45	30	165	297	206	147	279	6
FC100P-2T-15GB	15	62	60	39	225	360	232	206	342	10
FC100P-2T-18.5G(B)	18.5	77	70	24	225	360	232	206	342	10
FC100P-2T-22G(B)	22	92	80	30	260	440	240	220	420	20
FC100P-2T-30G(B)	30	113	110	39	260	440	240	220	420	20
FC100P-2T-37G(B)	37	156	152	114	300	555	280	240	535	33
FC100P-2T-45G(B)	45	180	176	134	338	580	325	270	560	50
FC100P-2T-55G	55	214	210	160	338	580	325	270	560	50
FC100P-2T-75G	75	307	304	231	400	780	350	320	756	75
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance)
FC100P-4T-0.75GB	0.75	3.4	2.1	1.5	90	197	139	74	187	1.5
FC100P-4T-1.5GB	1.5	5	3.8	3
FC100P-4T-2.2GB	2.2	5.8	5.1	4
FC100P-4T-4.0GB	4	10.5	9	5.9
FC100P-4T-5.5GB	5.5	14.6	13	8.9	102	202	162	90	189	3
FC100P-4T-7.5GB	7.5	19	17	11	102	202	162	90	189	3
FC100P-4T-11GB	11	28	25	16	125	243	170	109	226	3.5
FC100P-4T-15GB	15	35	32	21	125	243	170	109	226	3.5
FC100P-4T-18.5GB	18.5	39	37	24	165	297	206	147	279	6
FC100P-4T-22GB	22	47	45	30	165	297	206	147	279	6
FC100P-4T-30G(B)	30	62	60	39	225	360	232	206	342	10
FC100P-4T-37G(B)	37	77	75	57	225	360	232	206	342	10
FC100P-4T-45G(B)	45	92	90	59	260	440	240	220	472	20
FC100P-4T-55G(B)-M	55	113	110	85	260	440	240	220	472	20
FC100P-4T-55G(B)	55	113	110	85	300	555	280	240	535	25
FC100P-4T-75G(B)	75	156	152	114	300	555	280	240	535	33
FC100P-4T-90G	90	180	176	134	338	580	325	270	560	50
FC100P-4T-110G	110	214	210	160	338	580	325	270	560	50
FC100P-4T-132G	132	256	253	192	400	780	350	320	756	75
FC100P-4T-160G	160	307	304	231
FC100P-4T-185G	185	345	340	236
FC100P-4T-200G	200	385	377	250	520	780	355	380	756	96
FC100P-4T-220G	220	430	426	280	520	780	355	380	756	96
FC100P-4T-250G	250	468	465	355	620	880	370	480	848	121
FC100P-4T-280G	280	525	520	396	620	880	370	480	848	121
FC100P-4T-315G	315	590	585	445	780	1350	394	620	1320	240
FC100P-4T-355G	355	665	650	500						240
FC100P-4T-400G	400	785	725	565						255
FC100P-4T-450G	450	883	820	630						255

Electrical Specification
Input Voltage	Single Phase/Three Phase 200-240V, Three Phase 380-440V
Input Voltage	Fluctuate no more than±10%，Imbalance Rate <3%.
Input Frequency	50/60Hz ± 5%
Output Voltage	0V ~ Input Voltage
Output Frequency	Vector Control：0 ~ 300Hz
Output Frequency	V/F Control：0 ~ 500Hz
Performance
Overload Capacity	150% rated output current for 1 minute, 180% rated output current for 2 seconds
Control Method	Open-loop vector control (SVC), V/F control
Run Command Setting Method	Operation panel setting、 External terminal setting、Communication setting
Speed Setting Method	Digital setting, analog setting/pulse setting, communication setting
Speed Setting Resolution	Digital setting: 0.01Hz, Analog setting: 1% X maximum frequency
Speed Control Accuracy	SVC：±0.5%
Speed Control Range	SVC：1:100
Torque Control Response	SVC：<200ms
Starting Torque	SVC：150% rated torque/0.5Hz
Special Feature
Programmable Input & Output Terminals	Input& Output terminal function can be edited
Process PID Adjustment Function	Built-in process PID module
Simple PLC Function	Built-in simple PLC module, which can realize timing and multi-segment frequency output.
Textile Wobble Function	Built-in textile swing frequency function module
Water Supply Function	Built-in constant pressure water supply parameter macro
Engraving Machine Function	Built-in engraving machine high frequency parameter macro
Fire Mode	Built-in European fire mode parameter set
Protective Function
Overvoltage Stall	Bus voltage automatic control to prevent overvoltage fault
Automatic Current Limiting Protection	Output current is automatically limited to prevent over-current faults
Overload Pre-Alarm & Alarm	Overload Pre-warning and protection
Output Phase Loss Protection	Output phase loss automatic detection and alarm function
Overvoltage & Overflow Stall Control	Automatically limit current and voltage during operation to prevent frequent over-current and over-voltage tripping
Output Short-to-Ground Protection	Effective protection function for output short circuit to ground
Output Phase-to-Phase Short Circuit Protection	Output interphase short circuit effective protection function
Input & Output
External Analog Power Supply	+10V-GND
External Digital Power Supply	24V-COM
Analog Input	AI1：Voltage 0－10V/0-20mA
Analog Input	AI2：Voltage 0－10V/0-20mA
Analog Output	AO1：0－10V/0－20mA（Voltage/Current Optional）
Analog Output	AO2:0~10V/0~20mA (Voltage/Current Optional)
Digital Input	DI1－DI5（can be selected as a high-speed pulse signal）
Digital Output	FM、AO2，FM can be selected as high-frequency pulse signal output.
Relay Output	TA/TB/TC：Contact rating 250VAC/3A or 30VDC/1A
MODBUS Communication	A+、B-
Operation Display
LED Display	Set frequency, output frequency, output voltage, output current, motor speed, Output torque, digital terminals, status parameters, programming menu parameters and fault codes etc
Indicator Light	3 unit indicators, 4 status indicators
Environmental Characteristics
Working Temperature	-10－+40℃, Maximum temperature is 50°C, Air Temperature change is less than 0.5°C/min,40－50℃ Derating is required, output current derating 2% for each 1℃
Storage Environment Temperature	-40－+70℃
Application	Indoor, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt etc.
Altitude	Less than 1000 meters, derating is required for more than 1000 meters
Humidity	Less than 95%RH, no condensation
Vibration Resistance	3.5m/s² at 2-9Hz, 10m/s² at 9-200Hz (IEC60721-3-3)
Protection Degree	IP20
Pollution Level	Class 2 (dry, non-conductive dust pollution)
Certification
CE	The whole series has passed CE certification
