| · Modular Design · Multi-Drive Capable · Rich Expandability · Easy & Reliable The FC290 Series from Janson Control is more than a standard VFD – it’s a precision-engineered, high-performance flux vector drive platform, purpose-built for OEM integration. Designed with innovation at its core, the FC290 features a modular power and control unit architecture and comes standard with press-fit terminals. This thoughtful engineering drastically simplifies cabinet installation and on-site commissioning, saving you valuable time and cost – making it the ideal drive for efficiency-driven production. | |||||||||

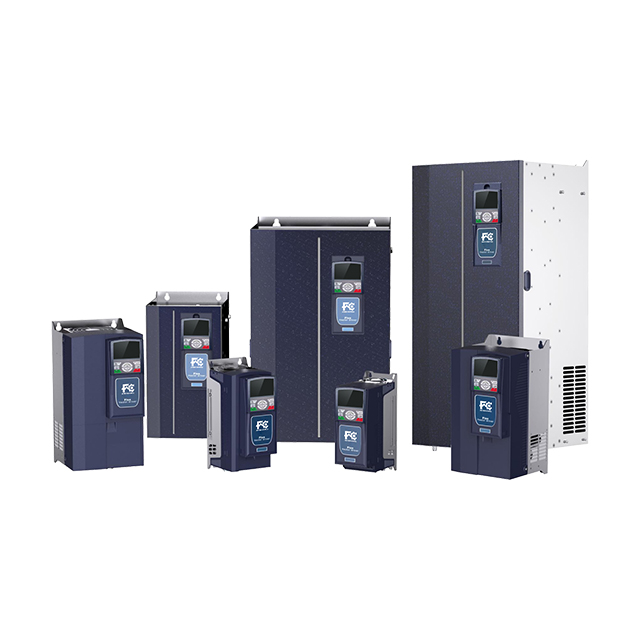

FC290
Janson Controls
| Model | Rated Power (kW) | Output | Input | Dimensions (mm) H*W*D | |
| Overload capacity | Rated current | Rated current | |||
| 3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | |||||
| 2T0.4GB | 0.4 | 150%/1min 180%/5s | 2.1 | 2.4 | 203*77.7*145.8 |
| 2T0.75GB | 0.75 | 3.8 | 4.6 | ||
| 2T1.5GB | 1.5 | 7.2 | 9.0 | ||
| 2T2.2GB | 2.2 | 9 | 11 | ||
| 2T4.0G(B) | 4 | 13 | 17 | 235*93*145 | |
| 2T5.5G(B) | 5.5 | 25 | 32 | 282.5*142*187 | |
| 2T7.5G(B) | 7.5 | 32 | 41 | ||
| 2T11G(B) | 11 | 45 | 59 | 305*150*202 | |
| 2T15GB | 15 | 60 | 57 | 330*180*208.5 | |
| 2T18.5G | 18 | 75 | 69 | 380.5*268*246 | |
| 2T22G | 22 | 91 | 90 | 500*307*255 | |
| 2T30G | 30 | 112 | 106 | ||
| 2T37G | 37 | 150 | 141 | ||
| 2T45G | 45 | 176 | 164 | 650*300*270 | |
| 2T55G | 55 | 210 | 201 | 680*310*320 | |
| 1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | |||||
| 2S0.4G(B) | 0.4 | 150%/1min 180%/5s | 2.3 | 5.4 | 203*77.7*145.8 |
| 2S0.75G(B) | 0.75 | 4 | 8.2 | ||
| 2S1.5G(B) | 1.5 | 7 | 14 | ||
| 2S2.2GB | 2.2 | 9.6 | 23 | ||
| 2S4.0GB | 4 | 13 | 32 | 235*93*145 | |
| 3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | |||||
| 4T0.75G/1.5PB | 0.75/1.5 | G型机: 150%/1min 180%/5s P型机: 120%/1min 150%/5s | 2.1 | 2.4 | 203*77.7*145.8 |
| 4T1.5G/2.2PB | 1.5/2.2 | 3.8 | 4 | ||
| 4T2.2G/4.0PB | 2.2/4.0 | 5.1 | 5.8 | ||
| 4T4.0G/5.5PB | 4.0/5.5 | 9/13 | 10.5 | 235*93*145 | |
| 4T5.5G/7.5PB | 5.5/7.5 | 13/17 | 14.6 | ||
| 4T7.5G/11PB | 7.5/11 | 17/25 | 20.5 | 282.5*142*187 | |
| 4T11G/15PB | 11/15 | 25/32 | |||
| 4T15G/18.5PB | 15/18.5 | 32/37 | 35 | 305*150*202 | |
| 4T18.5G/22PB | 18.5/22 | 37/45 | 38.5 | ||
| 4T22G/30PB | 22/30 | 45/60 | 46.5 | 330*180*208.5 | |
| 4T30G/37P | 30/37 | 60/75 | 62 | 418*240*248 | |
| 4T37G/45P | 37/45 | 75/91 | 76 | ||
| 4T45G/55P | 45/55 | 91/112 | 92 | 500*307*255 | |
| 4T55G/75P | 55/75 | 112/150 | 113 | ||
| 4T75G/90P | 75/90 | 150/176 | 157 | 650*300*270 | |
| 4T90G/110P | 90/110 | 176/210 | 180 | ||
| 4T110G/132P | 110/132 | 210/253 | 214 | 680*310*320 | |
| 4T132G/160P | 132/160 | 253/304 | 214 | 720*425*326 | |
| 4T160G/185P | 160/185 | 304/340 | 256 | ||
| 4T185G/200P | 185/200 | 340/377 | 350 | 946*335*537 | |
| 4T200G/220P | 200/220 | 377/426 | 385 | ||
| 4T220G/250P | 220/250 | 426/465 | 430 | ||
| 4T250G/280P | 250/280 | 465/520 | 468 | 986*340*585 | |
| 4T315G/355P | 280/315 | 520/585 | 525 | 1140*340*585 | |
| 4T280G/315P | 315/355 | 585/650 | 590 | ||
| 4T355G/400P | 355/400 | 650/725 | 665 | 1058*700*412 | |
| 4T400G/450P | 400/450 | 725/800 | 785 | 1264*800*483 | |
| 4T450G/500P | 450/500 | 800/860 | 883 | ||
| 4T500G/560P | 500/560 | 860/950 | 950 | 1700*900*510 | |
| 4T560G/630P | 560/630 | 950/1140 | 1000 | ||
| 4T630G | 630 | 1140/1300 | 1140 | ||
| 4T710G | 710 | 1300/1500 | 1315/1525 | 1800*1200*500 | |
| 4T800G | 800 | 1500 | 1525 | ||
| Model | Rated Power (kW) | Output | Input | Dimensions (mm) H*W*D | |
| Overload capacity | Rated current | Rated current | |||
| 3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | |||||
| 2T0.4GB | 0.4 | 150%/1min 180%/5s | 2.1 | 2.4 | 203*77.7*145.8 |
| 2T0.75GB | 0.75 | 3.8 | 4.6 | ||
| 2T1.5GB | 1.5 | 7.2 | 9.0 | ||
| 2T2.2GB | 2.2 | 9 | 11 | ||
| 2T4.0G(B) | 4 | 13 | 17 | 235*93*145 | |
| 2T5.5G(B) | 5.5 | 25 | 32 | 282.5*142*187 | |
| 2T7.5G(B) | 7.5 | 32 | 41 | ||
| 2T11G(B) | 11 | 45 | 59 | 305*150*202 | |
| 2T15GB | 15 | 60 | 57 | 330*180*208.5 | |
| 2T18.5G | 18 | 75 | 69 | 380.5*268*246 | |
| 2T22G | 22 | 91 | 90 | 500*307*255 | |
| 2T30G | 30 | 112 | 106 | ||
| 2T37G | 37 | 150 | 141 | ||
| 2T45G | 45 | 176 | 164 | 650*300*270 | |
| 2T55G | 55 | 210 | 201 | 680*310*320 | |
| 1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | |||||
| 2S0.4G(B) | 0.4 | 150%/1min 180%/5s | 2.3 | 5.4 | 203*77.7*145.8 |
| 2S0.75G(B) | 0.75 | 4 | 8.2 | ||
| 2S1.5G(B) | 1.5 | 7 | 14 | ||
| 2S2.2GB | 2.2 | 9.6 | 23 | ||
| 2S4.0GB | 4 | 13 | 32 | 235*93*145 | |
| 3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | |||||
| 4T0.75G/1.5PB | 0.75/1.5 | G型机: 150%/1min 180%/5s P型机: 120%/1min 150%/5s | 2.1 | 2.4 | 203*77.7*145.8 |
| 4T1.5G/2.2PB | 1.5/2.2 | 3.8 | 4 | ||
| 4T2.2G/4.0PB | 2.2/4.0 | 5.1 | 5.8 | ||
| 4T4.0G/5.5PB | 4.0/5.5 | 9/13 | 10.5 | 235*93*145 | |
| 4T5.5G/7.5PB | 5.5/7.5 | 13/17 | 14.6 | ||
| 4T7.5G/11PB | 7.5/11 | 17/25 | 20.5 | 282.5*142*187 | |
| 4T11G/15PB | 11/15 | 25/32 | |||
| 4T15G/18.5PB | 15/18.5 | 32/37 | 35 | 305*150*202 | |
| 4T18.5G/22PB | 18.5/22 | 37/45 | 38.5 | ||
| 4T22G/30PB | 22/30 | 45/60 | 46.5 | 330*180*208.5 | |
| 4T30G/37P | 30/37 | 60/75 | 62 | 418*240*248 | |
| 4T37G/45P | 37/45 | 75/91 | 76 | ||
| 4T45G/55P | 45/55 | 91/112 | 92 | 500*307*255 | |
| 4T55G/75P | 55/75 | 112/150 | 113 | ||
| 4T75G/90P | 75/90 | 150/176 | 157 | 650*300*270 | |
| 4T90G/110P | 90/110 | 176/210 | 180 | ||
| 4T110G/132P | 110/132 | 210/253 | 214 | 680*310*320 | |
| 4T132G/160P | 132/160 | 253/304 | 214 | 720*425*326 | |
| 4T160G/185P | 160/185 | 304/340 | 256 | ||
| 4T185G/200P | 185/200 | 340/377 | 350 | 946*335*537 | |
| 4T200G/220P | 200/220 | 377/426 | 385 | ||
| 4T220G/250P | 220/250 | 426/465 | 430 | ||
| 4T250G/280P | 250/280 | 465/520 | 468 | 986*340*585 | |
| 4T315G/355P | 280/315 | 520/585 | 525 | 1140*340*585 | |
| 4T280G/315P | 315/355 | 585/650 | 590 | ||
| 4T355G/400P | 355/400 | 650/725 | 665 | 1058*700*412 | |
| 4T400G/450P | 400/450 | 725/800 | 785 | 1264*800*483 | |
| 4T450G/500P | 450/500 | 800/860 | 883 | ||
| 4T500G/560P | 500/560 | 860/950 | 950 | 1700*900*510 | |
| 4T560G/630P | 560/630 | 950/1140 | 1000 | ||
| 4T630G | 630 | 1140/1300 | 1140 | ||
| 4T710G | 710 | 1300/1500 | 1315/1525 | 1800*1200*500 | |
| 4T800G | 800 | 1500 | 1525 | ||
| Project | Specifications | ||
| Basic Function | |||
| Maximum frequency | Vector control: 0~599Hz; V/F control: 0~599Hz. | ||
| Carrier frequency | The carrier frequency can be automatically adjusted from 0.5kHz to 16kHz according to the load characteristics. | ||
| Input frequency resolution | Digital setting: 0.01Hz | ||
| Control method | Sensorless Vector Control (SVC) | ||
| Pull-in torque | G-type machine:0.5Hz/150%(SVC); 0HZ/180%(FVC) P-type machine:0.5Hz/100% | ||
| Speed range | 1:100(SVC) 1:1000(FVC) | ||
| Speed holding accuracy | ±0.5%(SVC)±0.02%(FVC) | ||
| Torque control accuracy | ±5%(FVC) | ||
| Overload capacity | G-type machine P-type machine | 150% rated current for 60 seconds 120% rated current for 60 seconds | 180% rated current for 5 seconds 150% rated current for 5 seconds |
| Torque lift | Automatic torque increase; manual torque increase 0.1%~30.0% | ||
| V/F curve | Three types: linear; multi-point; Nth power V/F curve | ||
| V/F separation | Two methods: total separation, partial separation | ||
| Acceleration-deceleration curve | Linear or S-curve acceleration/deceleration method with four acceleration/deceleration time intervals. Acceleration and deceleration time range 0.0s~6500.0s | ||
| DC injection braking | DC braking frequency: 0.00Hz~ maximum frequency braking time: 0.0s~36.0s Braking action current:0.0%~100.0% | ||
| Electronic control | Dot frequency range: 0.00Hz~50.00Hz. Time of acceleration and deceleration:0.0s~6500.0s. | ||
| Simple PLC/Multi-speed Operation | Supports up to 16 speed segments through built-in PLC or control terminals | ||
| Built-in PID | A closed-loop control system for process control can be easily implemented. | ||
| Automatic voltage regulation | Automatically maintains constant output voltage when grid voltage changes | ||
| Overvoltage and overcurrent flow rate control | Automatically limits current and voltage during operation to prevent frequent overcurrent and overvoltage trips | ||
| Quick rate limiting | Minimize overcurrent faults to ensure the driver operates normally. | ||
| Torque limit and control | The excavator features automatic torque limitation during operation to prevent frequent overcurrent tripping, and the closed-loop vector mode enables torque control. | ||
| Personalized Operational Features | |||
| Excellent performance | Control of Asynchronous and Synchronous Motors by High Performance Current Vector Control Technology | ||
| Stop without stopping | During transient power outages, the driver maintains short-term operation through load feedback energy. | ||
| Quick rate limiting | Prevent the drive from frequently experiencing overcurrent faults | ||
| Invented IO | Five Groups of Virtual DIDO, Simple Logic Control | ||
| Timing control | Time control function: L set time range 0.0Min~6500.0Min | ||
| Multi motor switching | The motor parameters of the two groups enable switching control between the two motors. | ||
| Motor overheat protection | Optional motor overheating expansion card accepts input from the motor temperature sensor | ||
| Multi-encoder support | Supports differential, open-collector encoders, and other types | ||
| Command source | The operation panel, control terminal, and serial communication port are all set. You can switch the command source through multiple methods. | ||
| Frequency source | 10 frequency sources: digital, analog voltage, analog current, pulse, and serial port. Switchable in multiple ways. | ||
| Auxiliary frequency source | 10 kinds of auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis. | ||
| Input terminal | standard Five digital input terminals (DIl to DI5), withDI5 supporting high-speed pulse input up to100kHz (model must be specified duringordering) Two analog input terminals (AI1~AI2):AI1supports 0~10V voltage input only, while AI2supports 0~10V voltage or 4~20mA currentinput. Scalability: 5 digital input terminals (DI6~DI10) An analog input terminal (Al3)supports-10 to+10V voltage input and PT100/PT1000 sensors(configurable) | ||
| Output terminal | standard 1 digital output terminal (DO1)1 relay output terminal (TA1-TB1-TC1)One analog output terminal (AOl) supports0~10mA and 0~20mA current outputs Scalability: One analog output terminal (AO2) supports0~20mA current or 0-10V voltage output Two relay output terminals(TA2-TB2-TC2 toTA3-TB3-TC3) | ||
| Control | |||
| RS485 communication terminal | An RS485 communication interface with Modbus-RTU slave communication protocol support | ||
| Keyboard and operation display | |||
| LED dual-display keyboard | Monitor the status parameters of the drive. | ||
| Button Lock and Function Selection | Lock some or all keys and define the fimctionrange ofspecific keys. to prevent accidental operation | ||
| Defencive function | Shanghai Electric Motor's short-circuit detection, phase loss protection for input/output, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, and overload protection. | ||
| Add Accessories | Brake module, IO expansion card, communication expansion card, bus expansion card, PG expansion card. | ||
| Environment | |||
| Usage location | Indoor, protected from direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water, or salt. | ||
| Above sea level | Below 1000m | ||
| Ambient temperature | -10'C to +40'C(when ambient temperatureranges from 40'C to 50°C, use at reducedcapacity)) | ||
| Humidity | Less than 95% RH, no droplet condensation | ||
| Vibrate | Less than 5.9m/(s~2)(0.6g) | ||
| Storage temperature | -20℃~+ 60°C | ||
| Multi motor switching | The motor parameters of the two groups enableswitching control between the two motors. | ||
| Project | Specifications | ||
| Basic Function | |||
| Maximum frequency | Vector control: 0~599Hz; V/F control: 0~599Hz. | ||
| Carrier frequency | The carrier frequency can be automatically adjusted from 0.5kHz to 16kHz according to the load characteristics. | ||
| Input frequency resolution | Digital setting: 0.01Hz | ||
| Control method | Sensorless Vector Control (SVC) | ||
| Pull-in torque | G-type machine:0.5Hz/150%(SVC); 0HZ/180%(FVC) P-type machine:0.5Hz/100% | ||
| Speed range | 1:100(SVC) 1:1000(FVC) | ||
| Speed holding accuracy | ±0.5%(SVC)±0.02%(FVC) | ||
| Torque control accuracy | ±5%(FVC) | ||
| Overload capacity | G-type machine P-type machine | 150% rated current for 60 seconds 120% rated current for 60 seconds | 180% rated current for 5 seconds 150% rated current for 5 seconds |
| Torque lift | Automatic torque increase; manual torque increase 0.1%~30.0% | ||
| V/F curve | Three types: linear; multi-point; Nth power V/F curve | ||
| V/F separation | Two methods: total separation, partial separation | ||
| Acceleration-deceleration curve | Linear or S-curve acceleration/deceleration method with four acceleration/deceleration time intervals. Acceleration and deceleration time range 0.0s~6500.0s | ||
| DC injection braking | DC braking frequency: 0.00Hz~ maximum frequency braking time: 0.0s~36.0s Braking action current:0.0%~100.0% | ||
| Electronic control | Dot frequency range: 0.00Hz~50.00Hz. Time of acceleration and deceleration:0.0s~6500.0s. | ||
| Simple PLC/Multi-speed Operation | Supports up to 16 speed segments through built-in PLC or control terminals | ||
| Built-in PID | A closed-loop control system for process control can be easily implemented. | ||
| Automatic voltage regulation | Automatically maintains constant output voltage when grid voltage changes | ||
| Overvoltage and overcurrent flow rate control | Automatically limits current and voltage during operation to prevent frequent overcurrent and overvoltage trips | ||
| Quick rate limiting | Minimize overcurrent faults to ensure the driver operates normally. | ||
| Torque limit and control | The excavator features automatic torque limitation during operation to prevent frequent overcurrent tripping, and the closed-loop vector mode enables torque control. | ||
| Personalized Operational Features | |||
| Excellent performance | Control of Asynchronous and Synchronous Motors by High Performance Current Vector Control Technology | ||
| Stop without stopping | During transient power outages, the driver maintains short-term operation through load feedback energy. | ||
| Quick rate limiting | Prevent the drive from frequently experiencing overcurrent faults | ||
| Invented IO | Five Groups of Virtual DIDO, Simple Logic Control | ||
| Timing control | Time control function: L set time range 0.0Min~6500.0Min | ||
| Multi motor switching | The motor parameters of the two groups enable switching control between the two motors. | ||
| Motor overheat protection | Optional motor overheating expansion card accepts input from the motor temperature sensor | ||
| Multi-encoder support | Supports differential, open-collector encoders, and other types | ||
| Command source | The operation panel, control terminal, and serial communication port are all set. You can switch the command source through multiple methods. | ||
| Frequency source | 10 frequency sources: digital, analog voltage, analog current, pulse, and serial port. Switchable in multiple ways. | ||
| Auxiliary frequency source | 10 kinds of auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis. | ||
| Input terminal | standard Five digital input terminals (DIl to DI5), withDI5 supporting high-speed pulse input up to100kHz (model must be specified duringordering) Two analog input terminals (AI1~AI2):AI1supports 0~10V voltage input only, while AI2supports 0~10V voltage or 4~20mA currentinput. Scalability: 5 digital input terminals (DI6~DI10) An analog input terminal (Al3)supports-10 to+10V voltage input and PT100/PT1000 sensors(configurable) | ||
| Output terminal | standard 1 digital output terminal (DO1)1 relay output terminal (TA1-TB1-TC1)One analog output terminal (AOl) supports0~10mA and 0~20mA current outputs Scalability: One analog output terminal (AO2) supports0~20mA current or 0-10V voltage output Two relay output terminals(TA2-TB2-TC2 toTA3-TB3-TC3) | ||
| Control | |||
| RS485 communication terminal | An RS485 communication interface with Modbus-RTU slave communication protocol support | ||
| Keyboard and operation display | |||
| LED dual-display keyboard | Monitor the status parameters of the drive. | ||
| Button Lock and Function Selection | Lock some or all keys and define the fimctionrange ofspecific keys. to prevent accidental operation | ||
| Defencive function | Shanghai Electric Motor's short-circuit detection, phase loss protection for input/output, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, and overload protection. | ||
| Add Accessories | Brake module, IO expansion card, communication expansion card, bus expansion card, PG expansion card. | ||
| Environment | |||
| Usage location | Indoor, protected from direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water, or salt. | ||
| Above sea level | Below 1000m | ||
| Ambient temperature | -10'C to +40'C(when ambient temperatureranges from 40'C to 50°C, use at reducedcapacity)) | ||
| Humidity | Less than 95% RH, no droplet condensation | ||
| Vibrate | Less than 5.9m/(s~2)(0.6g) | ||
| Storage temperature | -20℃~+ 60°C | ||
| Multi motor switching | The motor parameters of the two groups enableswitching control between the two motors. | ||
content is empty!
