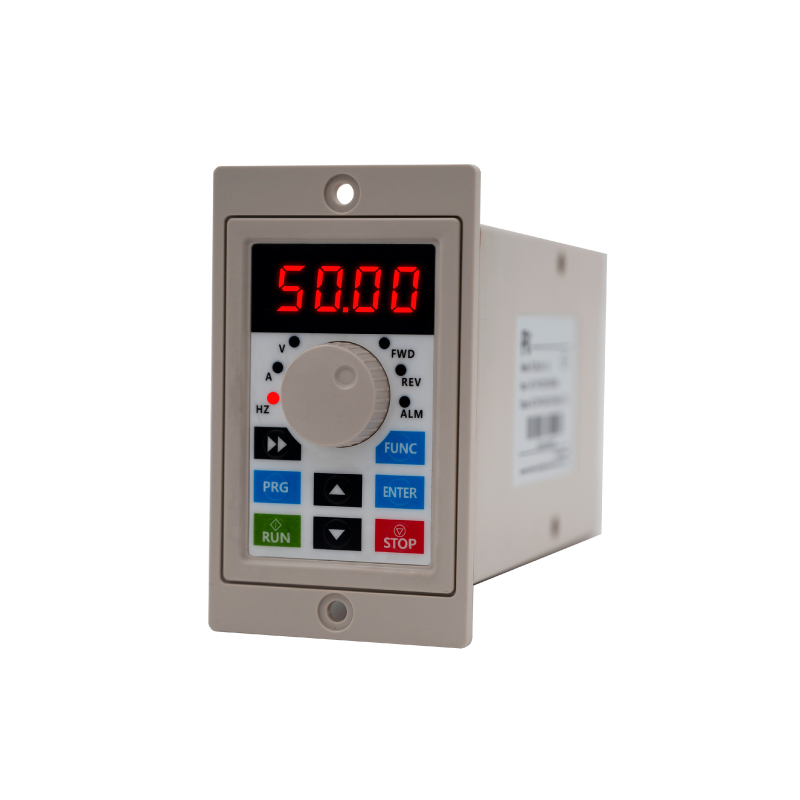

Product Feature
1. Compact structure with complete functions, instrument installation
2. Keyboard can be used externally, low frequency with large torque
3. A new generation IPM module with complete protection functions
Product Selection
| Item No. | Adaptable Motor (kW) | Input Current (A) | Output Current (A) | Rate Capacity (kVA) | W (mm) | H (mm) | D (mm) | W1 (mm) | H1 (mm) | Diameter (mm) | GW (kg) |
| 1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | |||||||||||
| FC20-2S-0.2 | 0.2 | 2.3 | 1.6 | 3 | 53 | 160 | 102 | 80 | 89.5 | Ø4.5 | 1.08 |
| FC20-2S-0.4 | 0.4 | 3.2 | 2.1 | 3.8 | 53 | 160 | 102 | 80 | 89.5 | Ø4.5 | 1.08 |
| FC20-2S-0.75 | 0.75 | 4 | 3.7 | 5.6 | 53 | 160 | 102 | 80 | 89.5 | Ø4.5 | 1.08 |
| FC20-2S-1.1 | 1.1 | 8.3 | 5.5 | 9.9 | 53 | 160 | 102 | 80 | 89.5 | Ø4.5 | 1.08 |
Technical Parameter
| Electrical Specification | |
| Input Voltage | Single Phase/Three Phase 200-240V |
| Fluctuate no more than±10%，Imbalance Rate <3% | |
| Input Frequency | 50/60Hz ± 5% |
| Output Voltage | 0V－Input Voltage |
| Output Frequency | 0 ～300Hz |
| Performance | |
| Overload Capacity | 150% rated output current for 15s |
| Control Method | Vector control, V/F control |
| Run Command Setting Method | Operation panel setting, external terminal setting, communication setting |
| Speed Setting Method | Digital setting, analog setting, communication setting |
| Speed Setting Resolution | Digital setting: 0.01Hz, Analog setting: 1% × maximum frequency |
| Special Feature | |
| Programmable Input & Output Terminals | Input& Output terminal function can be edited |
| Process PID Adjustment Function | Built-in process PID module |
| Protective function | |
| Overvoltage Stall | Bus voltage automatic control to prevent overvoltage fault |
| Automatic Current Limiting Protection | Output current is automatically limited to prevent over-current faults |
| Overload Pre-Alarm & Alarm | Overload Pre-warning and protection |
| Output Phase Loss Protection | Output phase loss automatic detection and alarm function |
| Input & Output | |
| External analog power supply | +5V，load capacity 20mA |
| External digital power supply | +24V，load capacity 100mA |
| Analog Input | AI：Voltage 0－5V |
| Digital Input | X1－X5 |
| Digital Output | Y1 |
| MODBUS Communication | A+、A- |
| Operation Display | |
| LED Display | Set frequency, output frequency, output voltage, output current, programming menu parameters and fault codes etc. |
| Indicator Light | 3 unit indicators, 3 status indicators |
| Environmental characteristics | |
| Working Temperature | -10－+40℃, Maximum temperature is 50°C, Air Temperature change is less than 0.5°C/min,40－50℃ Derating is required, output current derating 2% for each 1℃ |
| Storage Environment Temperature | -40－+70℃ |
| Application | Indoor, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt etc. |
| Altitude | Less than 1000 meters, derating is required for more than 1000 meters |
| Humidity | Less than 95%RH, no condensation |
| Vibration resistance | 3.5m/s² at 2-9Hz, 10m/s² at 9-200Hz (IEC60721-3-3) |
| Protection Degree | IP20 |
