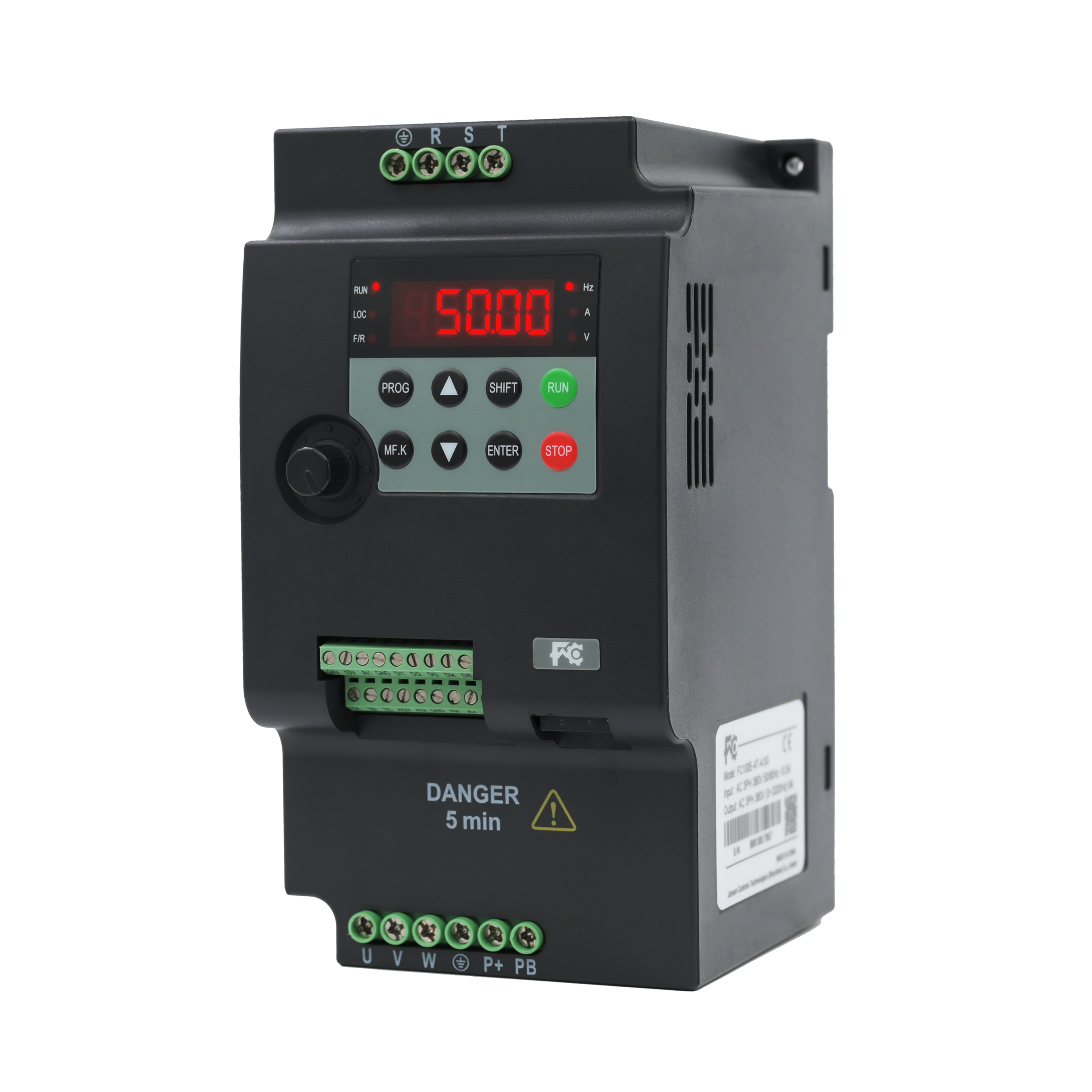

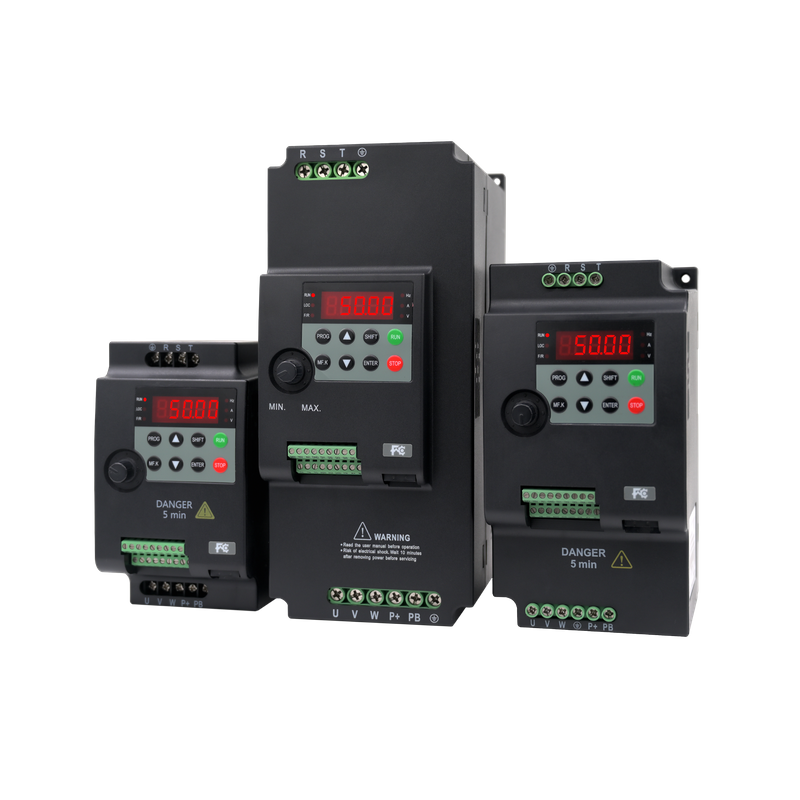

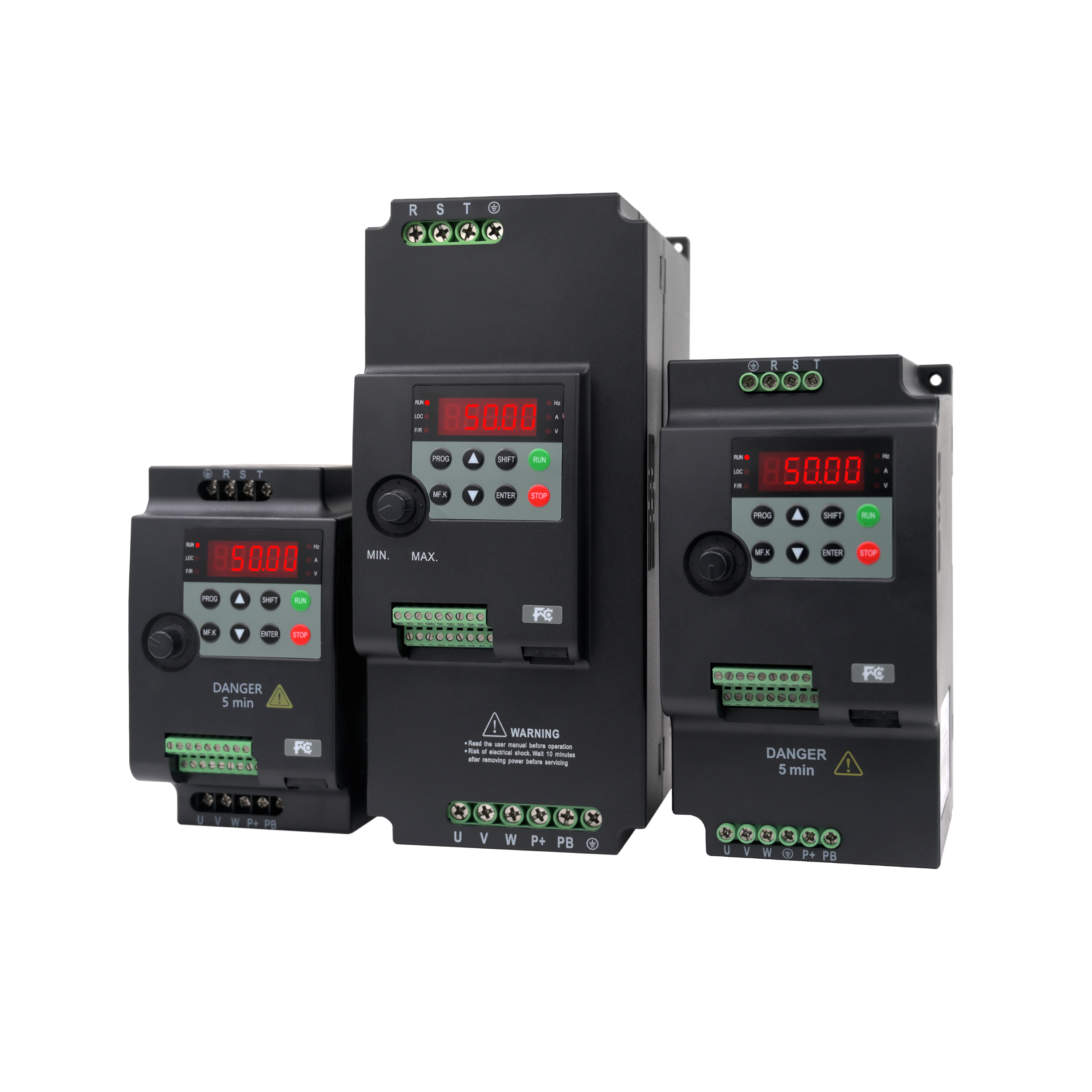

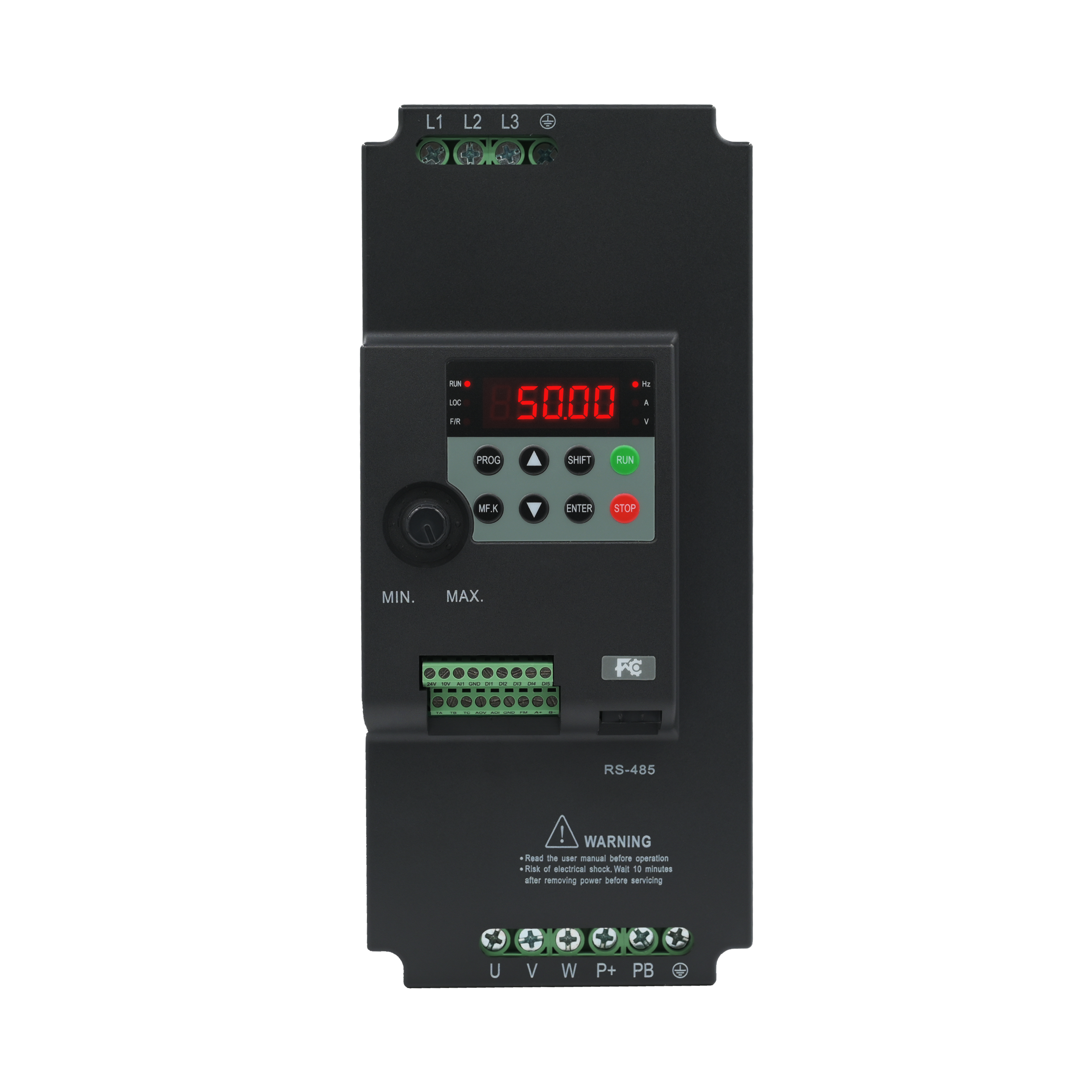

FC100E
JANSON CONTROLS
Flexible control mode: supports open-loop vector control and V/F control to meet the needs of different application scenarios.
High-precision control: In open-loop vector mode, the control accuracy is as high as ±0.5%, ensuring precise operation.
Super overload capacity: 150% rated output current can last for 1 minute, 180% rated output current can last for 2 seconds, ensuring equipment reliability.
Comprehensive protection mechanism: with overvoltage stall protection, automatic current limit protection, output phase loss protection and other protection mechanisms.
Precise control: Built-in PID function, suitable for scenes that require precise control, improving control accuracy. Simple PLC can achieve timing and multi-frequency output, improving the level of automation.
Industry-specific functions: Built-in textile swing frequency function module, specially designed for the textile industry, to improve process flexibility.
Communication interface: Standard RS485 communication interface, supports Modbus RTU communication, and realizes remote control and parameter setting.
Product Selection
| Item No. | Adaptable Motor (kW) | Input Current (A) | Output Current (A) | Rate Capacity (kVA) | W (mm) | H (mm) | D (mm) | W1 (mm) | H1 (mm) | GW (kg) |
| 1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||
| FC100E-2S-0.4G | 0.4 | 6.5 | 2.1 | 0.7 | 85 | 142 | 116 | 73 | 136 | 1.0 |
| FC100E-2S-0.75G | 0.75 | 8.2 | 4 | 1.5 | ||||||
| FC100E-2S-1.5G | 1.5 | 14 | 7 | 3 | ||||||
| FC100E-2S-2.2G | 2.2 | 23 | 9.6 | 4 | ||||||
| FC100E-2S-4.0G | 4 | 39 | 16.5 | 5.9 | 106.5 | 240.5 | 148 | 96 | 230 | 3.0 |
| FC100E-2S-5.5G | 5.5 | 60 | 25 | 8.5 | ||||||
| 3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||
| FC100E-2T-4.0G | 4 | 19 | 16.5 | 5.9 | 106.5 | 240.5 | 148 | 96 | 230 | 3 |
| FC100E-2T-5.5G | 5.5 | 28 | 25 | 8.5 | ||||||
| FC100E-2T-7.5G | 7.5 | 35 | 30 | 11 | ||||||
| 3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||
| FC100E-4T-0.75G | 0.75 | 3.4 | 2.1 | 1.5 | 85 | 142 | 116 | 73 | 136 | 1.0 |
| FC100E-4T-1.5G | 1.5 | 5 | 3.8 | 3 | ||||||
| FC100E-4T-2.2G | 2.2 | 5.8 | 5.1 | 4 | ||||||
| FC100E-4T-4.0G | 4 | 10.5 | 9 | 5.9 | 95 | 180 | 120 | 83 | 168 | 2.0 |
| FC100E-4T-5.5G | 5.5 | 14.6 | 13 | 8.9 | ||||||
| FC100E-4T-7.5G | 7.5 | 19 | 17 | 11 | 106.5 | 240.5 | 148 | 96 | 230 | 3.0 |
| FC100E-4T-11G | 11 | 28 | 25 | 16 | ||||||
| FC100E-4T-15G | 15 | 35 | 32 | 21 | ||||||
| 1 Phase Input 220V and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||
| FC100E-2S4T-0.75G | 0.75 | 7.5 | 2.5 | 1.5 | 85 | 142 | 116 | 73 | 136 | 1.0 |
| FC100E-2S4T-1.5G | 1.5 | 11 | 3.7 | 3 | ||||||
| FC100E-2S4T-2.2G | 2.2 | 15 | 5 | 4 | ||||||
| FC100E-2S4T-4.0G | 4 | 26 | 8.5 | 5.9 | 95 | 180 | 120 | 83 | 168 | 2.0 |
| FC100E-2S4T-5.5G | 5.5 | 39 | 13 | 8.9 | ||||||
| Electrical Specification | |
| Input Voltage | Single Phase/Three Phase 200-240V, Three Phase 380-440V |
| Fluctuate no more than±10%，Imbalance Rate <3% | |
| Input Frequency | 50/60Hz ± 5% |
| Output Voltage | 0V－Input Voltage |
| Output Frequency | Vector Control：0 ～ 300Hz |
| V/F Control：0 ～3200Hz | |
| Performance | |
| Overload Capacity | 150% rated output current for 1 minute, 180% rated output current for 2 seconds |
| Control Method | Open-loop vector control (SVC), V/F control |
| Run Command Setting Method | Operation Panel Setting、 External Terminal Setting、Communication Setting |
| Speed Setting Method | Digital setting, analog setting/pulse setting, communication setting |
| Speed Setting Resolution | Digital setting: 0.01Hz, Analog setting: 1% X maximum frequency |
| Speed Control Accuracy | SVC：±0.5% |
| Speed Control Range | SVC：1:100 |
| Torque Control Response | SVC：<200ms |
| Starting Torque | SVC：150% rated torque/0.5Hz |
| Special Feature | |
| Programmable Input & Output Terminals | Input& Output terminal function can be edited |
| Process PID Adjustment Function | Built-in process PID module |
| Simple PLC Function | Built-in simple PLC module, which can realize timing and multi-segment frequency output |
| Textile Wobble Function | Built-in textile swing frequency function module |
| Protective Function | |
| Overvoltage Stall | Bus voltage automatic control to prevent overvoltage fault |
| Automatic Current Limiting Protection | Output current is automatically limited to prevent over-current faults |
| Overload Pre-Alarm & Alarm | Overload Pre-warning and protection |
| Output Phase Loss Protection | Output phase loss automatic detection and alarm function |
| Overvoltage & Overflow Stall Control | Automatically limit current and voltage during operation to prevent frequent over-current and over-voltage tripping |
| Output Short-to-Ground Protection | Effective protection function for output short circuit to ground |
| Output Phase-to-Phase Short Circuit Protection | Output interphase short circuit effective protection function |
| Input & Output | |
| External analog power supply | +10V，load capacity 100mA |
| External digital power supply | +24V，load capacity 200mA |
| Analog Input | AI1：Voltage 0－10V/0-20mA |
| Analog Voltage Output | AOV：0－10V |
| Analog Current Output | AOI：0－20mA |
| Digital Input | DI1－DI5（DI5 can be selected as a high-speed pulse signal） |
| Digital Output | FM：FM can be selected as high-frequency pulse signal output |
| Relay output | TA/TB/TC：Contact rating 250VAC/3A or 30VDC/1A |
| MODBUS Communication | A+、B- |
| Operation Display | |
| LED Display | Set frequency, output frequency, output voltage, output current, motor speed, output torque, digital terminals, status parameters, programming menu parameters and fault codes etc. |
| Indicator Light | 3 units indicators, 3 status indicators |
| Environmental Characteristics | |
| Working Temperature | -10－+40℃, Maximum temperature is 50°C, Air Temperature change is less than 0.5°C/min,40－50℃ Derating is required, output current derating 2% for each 1℃ |
| Storage Environment Temperature | -40－+70℃ |
| Application | Indoor, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt etc. |
| Altitude | Less than 1000 meters, derating is required for more than 1000 meters |
| Humidity | Less than 95%RH, no condensation |
| Vibration resistance | 3.5m/s² at 2~9Hz, 10m/s² at 9~200Hz (IEC60721-3-3) |
| Protection Degree | IP20 |
| Pollution Level | Class 2 (dry, non-conductive dust pollution) |
| Certification | |
| CE | The whole series has passed CE certification |
| Optional Accessories | |

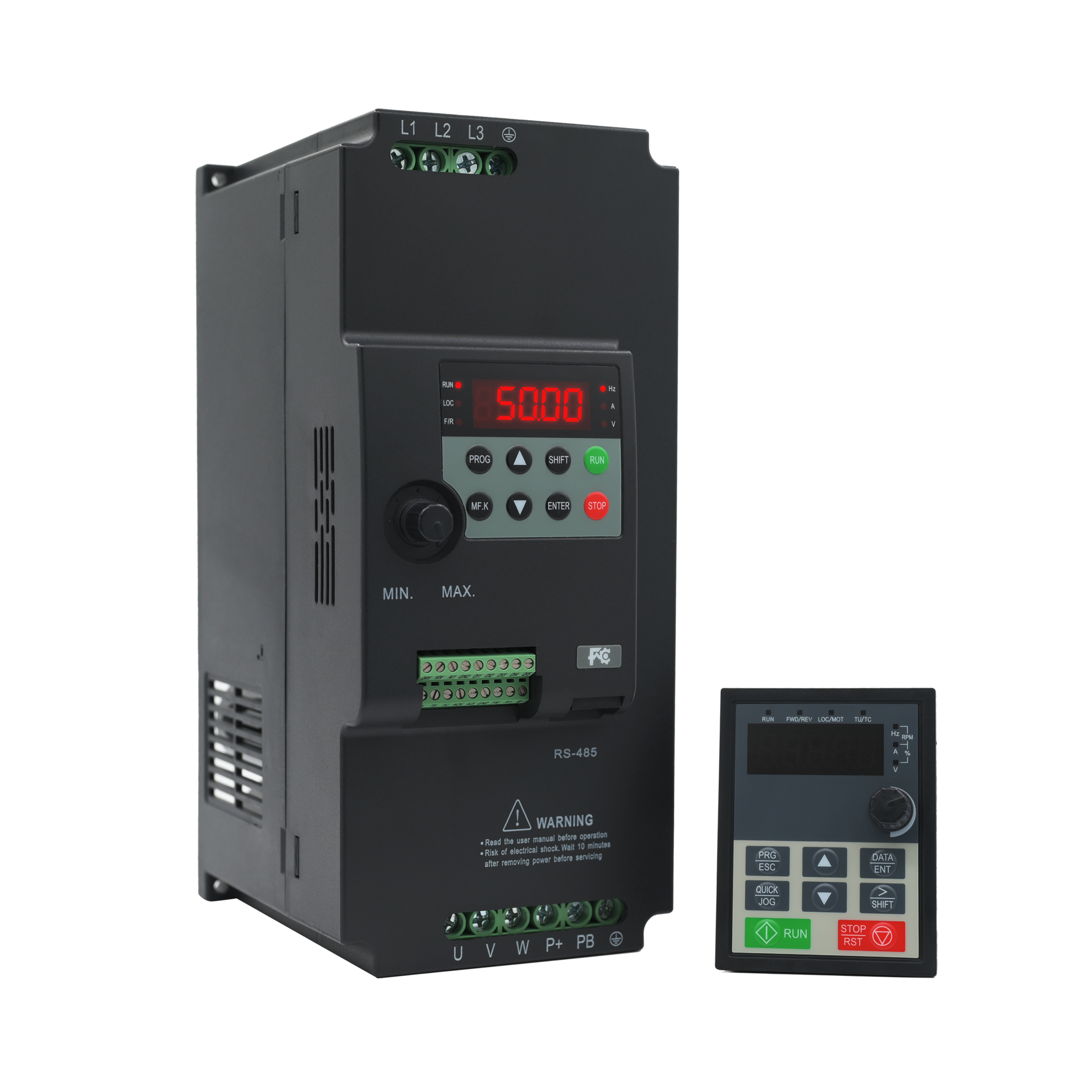

| Keypad | The whole series supports external keyboard through standard network cable |
