In today’s increasingly electrified world, inverters play a crucial role in converting direct current (DC) into alternating current (AC) to power everything from household appliances to industrial machinery. However, not all inverters are created equal. The quality of the AC output can significantly affect device performance, energy efficiency, and the longevity of connected equipment. This is where sine wave filters come into play. Designed to improve the quality of inverter output, these filters ensure a clean, stable sine wave that enhances both performance and reliability.
Sine wave inverters are devices that convert DC power, typically from batteries or solar panels, into AC power. The goal is to mimic the pure sine wave supplied by the grid, providing smooth voltage and current for electronic devices.
Pure sine wave inverters: Provide clean, high-quality AC output suitable for sensitive electronics, medical devices, and precision instruments.
Modified sine wave inverters: Offer a less precise waveform with rapid transitions, which may work for simple appliances but can cause inefficiency, heat, or noise in sensitive equipment.
Even high-quality inverters may produce some harmonic distortion or high-frequency noise, which can reduce efficiency and increase wear on connected devices. This is where sine wave filters become valuable.
A sine wave filter is an electrical component designed to smooth and clean the output waveform of an inverter. By reducing harmonics, voltage spikes, and electromagnetic interference (EMI), the filter ensures that the AC output closely resembles a pure sine wave.
Harmonic suppression: Reduces unwanted high-frequency components that can damage sensitive devices.
Noise reduction: Minimizes audible humming or buzzing from appliances.
Voltage stabilization: Ensures that voltage fluctuations are smoothed out, protecting equipment from sudden spikes or dips.
Improved power factor: Optimizes the efficiency of energy use, which can reduce electricity costs and extend inverter life.
By addressing these issues, sine wave filters enhance both performance and the safety of inverter-connected systems.
Sine wave filters offer multiple advantages for both residential and industrial inverter systems. By improving the quality of AC output, they not only protect connected devices but also enhance overall system performance, efficiency, and longevity.
Modern electronics—ranging from computers and medical equipment to HVAC systems and LED lighting—are highly sensitive to power quality. Distorted or “dirty” waveforms from inverters can lead to overheating, erratic behavior, reduced performance, or even permanent damage. A sine wave filter ensures that the AC output closely mimics the clean, stable power from the grid, providing a safe and reliable energy source for sensitive devices. This protection is especially critical in environments where expensive or mission-critical equipment is in use, reducing the risk of costly repairs or downtime.
High-frequency noise and harmonic distortion in inverter output reduce the efficiency of power delivery, leading to unnecessary energy losses and excess heat. By filtering these unwanted components, sine wave filters allow the inverter to operate more effectively, delivering cleaner power with minimal waste. Improved energy efficiency translates into lower electricity consumption, reduced heat generation, and a more environmentally friendly operation. For industrial setups with large electrical loads, this efficiency gain can result in significant operational cost savings over time.
Electrical stress caused by waveform distortion can accelerate wear and tear on inverter components, such as transistors, capacitors, and transformers. Sine wave filters reduce this stress by smoothing the output waveform, thereby lowering thermal and electrical strain. This prolongs the life of the inverter itself and also protects the devices connected to it. Over time, this ensures more consistent performance, fewer maintenance requirements, and a more reliable power supply for critical operations.
Electromagnetic interference (EMI) can disrupt communication networks, audio/video equipment, industrial machinery, and other electronic systems. In both industrial and residential environments, EMI can cause malfunctions, signal errors, or degraded performance. By suppressing high-frequency harmonics and smoothing voltage fluctuations, sine wave filters significantly reduce EMI, ensuring smooth operation across all systems. This benefit is particularly important in sensitive or high-tech environments, where uninterrupted performance is essential.
Overall, the integration of a sine wave filter enhances system reliability, optimizes energy use, and safeguards both inverters and connected equipment, making it a critical component for modern power systems.
Sine wave filters are widely used across multiple industries and applications:
Solar and renewable energy systems: Smooth AC output ensures efficient energy use and reliable operation of household appliances and industrial equipment.
Medical devices: Sensitive instruments require precise voltage control for accurate measurements and safe operation.
Industrial machinery: Motors and drives benefit from clean power, reducing heat and wear while improving performance.
Audio and video systems: Reduces noise and distortion, improving overall sound and image quality.
Telecommunication systems: Ensures stable power for critical communication equipment, reducing the risk of signal disruption.
In essence, any system relying on high-quality AC power can benefit from integrating a sine wave filter.
Depending on application and inverter type, several filter designs are available:

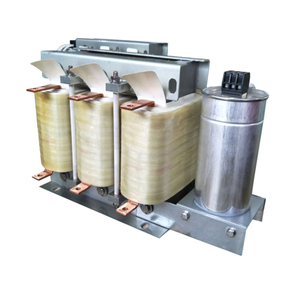

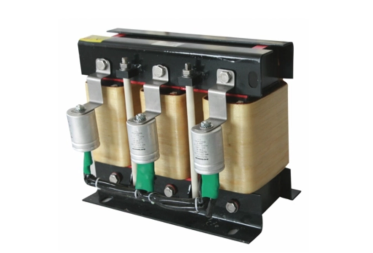

LC Filters: Utilize inductors (L) and capacitors (C) to smooth voltage and current waveforms. Common in both small-scale and industrial applications.
Active Filters: Use power electronics to dynamically correct waveform distortion in real-time. Often employed in advanced industrial setups.
Hybrid Filters: Combine passive and active components for optimal performance in sensitive or high-load applications.
Choosing the right filter type depends on the complexity of the inverter system, the level of harmonic suppression required, and the sensitivity of the connected devices.
When integrating a sine wave filter into an inverter system, consider the following factors:
Load capacity: Ensure the filter can handle the maximum load of the connected devices.
Voltage and current rating: Match the filter’s specifications to the inverter output to prevent overloading.
Harmonic reduction level: Select a filter that meets the required harmonic suppression for your specific application.
Efficiency and size: Larger or more complex filters may provide better performance but can take up more space and reduce overall system efficiency.
Environmental conditions: Filters may need to withstand temperature fluctuations, humidity, or vibration depending on installation conditions.
Proper selection ensures optimal performance and longevity for both the inverter and connected systems.
Installing a sine wave filter is usually straightforward but requires careful consideration of placement and connections:
Proximity to inverter: Installing the filter close to the inverter output ensures maximum noise suppression.
Connection integrity: Secure, low-resistance connections reduce heat generation and improve filter performance.
Periodic inspection: Check for loose connections, corrosion, or component wear to maintain efficiency.
Compatibility verification: Ensure the filter is compatible with both inverter type and load characteristics to prevent inefficiencies or malfunction.
Routine maintenance is simple but critical, ensuring the inverter system continues to operate safely and efficiently.
Sine wave filters play a pivotal role in enhancing inverter performance, protecting sensitive electronics, and improving energy efficiency. By reducing harmonic distortion, noise, and voltage fluctuations, these filters ensure smooth, reliable, and safe AC output, whether for residential, industrial, or renewable energy applications.
For businesses and professionals seeking high-quality sine wave filters, Janson Controls Technologies (Shenzhen) Co., Ltd. offers reliable solutions tailored to various inverter applications. With expertise in advanced electrical systems and precision manufacturing, they provide products that enhance performance and reliability. To explore their range of sine wave filters and find the best solution for your inverter setup, this company is an excellent point of contact.
