Aluminum Enclosure Resistor（RXLG)

SKU:
Availability:

Quantity:



RXLG series aluminum shell winding resistor using alloy enclosure,beautiful shape,beautiful shape,the resistance have the weather resistance,vibration resistance security is superior to the traditional porcelain skeleton resistor resistor .
Inquire Add to Basket

Product Feature

Product Introduction

RXLG series aluminum shell winding resistor using alloy enclosure,beautiful shape,beautiful shape,the resistance have the weather resistance,vibration resistance security is superior to the traditional porcelain skeleton resistor resistor .

Product Application

1. As a braking resistor to protect the inverters, servos, etc., from damage by regenerative energy of the motor;
2. As a resistive load in power electronic load tests;
3. As a sampling resister, limiting resistor, starting resistor, or protective resistor in power electronic equipment.

Applicable Standards

GB/T5729-1994

Customization & ODM Capabilities

More Than a Standard Product. It's Your Custom Starting Point

This platform is designed for adaptation and supports:

Software Tailoring

Modify parameters and develop specialized functions.

Hardware Adaptation

Adjust mechanical design and swap key components.

Complete Branding

Apply your logo and packaging seamlessly.

Explore the Customization Process

Related Products

Aluminum Enclosure Resistor Assemblies（LRA）

Neutral Grounding Resistor (NRA)

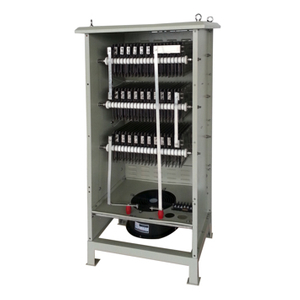

SUS Resistor Assemblies（SRA）

Resistor AssembliesHigh Power Resistor Assemblies（RA/HRA）

Heating pipe Resistor Assemblies（JRA）

Wire Wound Resistor（RXHG)

1.Resistance value and the change range :	1Ω≤R ±5%（J）,1Ω>R ±10%（K）
2.Rated load:	The maximum surface temperature,50~200W≤275℃,＞200W≤350℃
3.Short-time overload:	No visible damage △R≤±（5%R+0.05Ω）10 times 5s
4.Insulation resistance:	R≥100MΩ1min DC 1000V
5.Withstanding voltage:	No visible damage,no arcing breakdown △R≤±（0.1%R+0.05）AC 3000V 5S
6.Resistance-temperature characteristic:	±260PPM/℃ ((less than 5?don′t test
7.Withstanding vibration:	No visible damage △R≤±（0.1%R+0.05?）f:5-200Hz a=1gX.Y.Z/2h
8.Heart resistance:	In addition to the terminal no pbvious discoloration and damage, marked clearly 350 ℃ 2hours
9.Waterlogging resistance:	No visible mechanical damage,marked clearly ?R≤±（5%R+0.05?） Insulation resistance≥ 10M?DC100 40℃ 95%RH 500hours
10.Durability(rated overload):	No visible damage,marked clearly △R≤±（5%R±0.05?）load 100%
11.Withstanding vibration:	No visible damage △R≤±（0.1%R+0.05?）f:5-200Hz a=1g X.Y.Z/2h
12.Resistance :	In addition to the terminal no obvious discolorati on and damage,marked clearly. 350±5℃， 120±5

1.Resistance value and the change range :	1Ω≤R ±5%（J）,1Ω>R ±10%（K）
2.Rated load:	The maximum surface temperature,50~200W≤275℃,＞200W≤350℃
3.Short-time overload:	No visible damage △R≤±（5%R+0.05Ω）10 times 5s
4.Insulation resistance:	R≥100MΩ1min DC 1000V
5.Withstanding voltage:	No visible damage,no arcing breakdown △R≤±（0.1%R+0.05）AC 3000V 5S
6.Resistance-temperature characteristic:	±260PPM/℃ ((less than 5?don′t test
7.Withstanding vibration:	No visible damage △R≤±（0.1%R+0.05?）f:5-200Hz a=1gX.Y.Z/2h
8.Heart resistance:	In addition to the terminal no pbvious discoloration and damage, marked clearly 350 ℃ 2hours
9.Waterlogging resistance:	No visible mechanical damage,marked clearly ?R≤±（5%R+0.05?） Insulation resistance≥ 10M?DC100 40℃ 95%RH 500hours
10.Durability(rated overload):	No visible damage,marked clearly △R≤±（5%R±0.05?）load 100%
11.Withstanding vibration:	No visible damage △R≤±（0.1%R+0.05?）f:5-200Hz a=1g X.Y.Z/2h
12.Resistance :	In addition to the terminal no obvious discolorati on and damage,marked clearly. 350±5℃， 120±5

Type	Product Picture	Rated Power （W）	Dimension A±1mm	B	C	D	Connecting Wire （mm）	Lead Length （mm）	Terminal
RXLG	A	60	115	102	40	20	1.5	250	2-5S
RXLG	A	80	140	127	40	20	1.5	250	2-5S
RXLG	A	100	165	152	40	20	1.5	250	2-5S
RXLG	A	120	190	177	40	20	1.5	250	2-5S
RXLG	A	150	215	202	40	20	2.5	250	2-5S
RXLG	A	200	165	152	60	30	2.5	250	2-5S
RXLG	A	300	215	202	60	30	2.5	250	2-5S
RXLG	A	400	265	252	60	30	2.5	250	2-5S
RXLG	A	500	335	322	60	30	2.5	250	2-5S
RXLG	A	800	400	41*387	60	59			M6
RXLG	B	1000	400	30*387	50	107			M6
RXLG	B	1200	450	30*437	50	107			M6
RXLG	B	1500	485	30*472	50	107			M6
RXLG	B	2000	550	30*537	50	107
RXLG	B	2500	550	30*537	50	107			M6

Type	Product Picture	Rated Power （W）	Dimension A±1mm	B	C	D	Connecting Wire （mm）	Lead Length （mm）	Terminal
RXLG	A	60	115	102	40	20	1.5	250	2-5S
RXLG	A	80	140	127	40	20	1.5	250	2-5S
RXLG	A	100	165	152	40	20	1.5	250	2-5S
RXLG	A	120	190	177	40	20	1.5	250	2-5S
RXLG	A	150	215	202	40	20	2.5	250	2-5S
RXLG	A	200	165	152	60	30	2.5	250	2-5S
RXLG	A	300	215	202	60	30	2.5	250	2-5S
RXLG	A	400	265	252	60	30	2.5	250	2-5S
RXLG	A	500	335	322	60	30	2.5	250	2-5S
RXLG	A	800	400	41*387	60	59			M6
RXLG	B	1000	400	30*387	50	107			M6
RXLG	B	1200	450	30*437	50	107			M6
RXLG	B	1500	485	30*472	50	107			M6
RXLG	B	2000	550	30*537	50	107
RXLG	B	2500	550	30*537	50	107			M6
