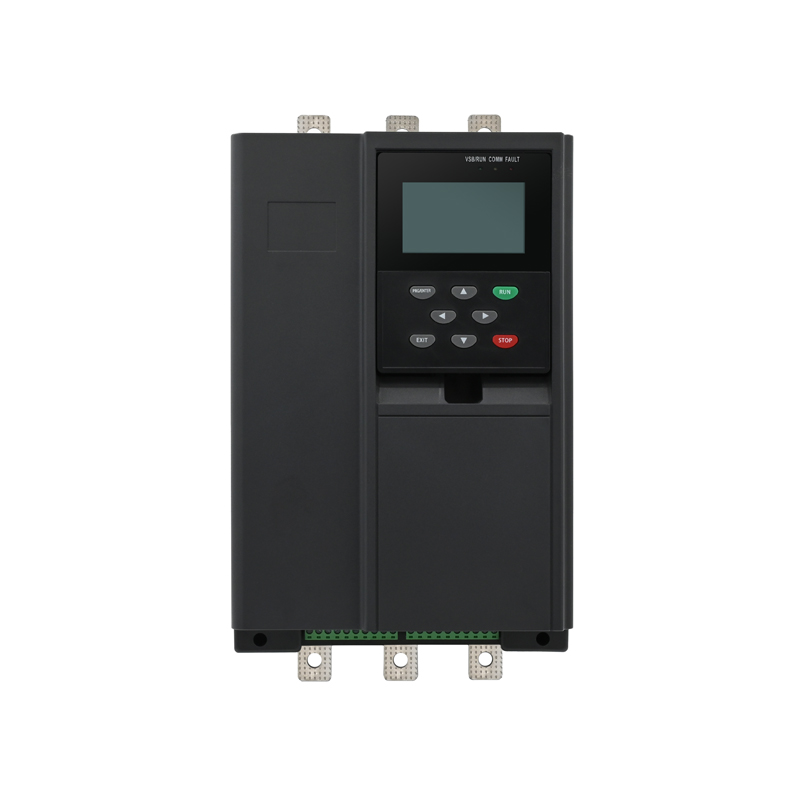

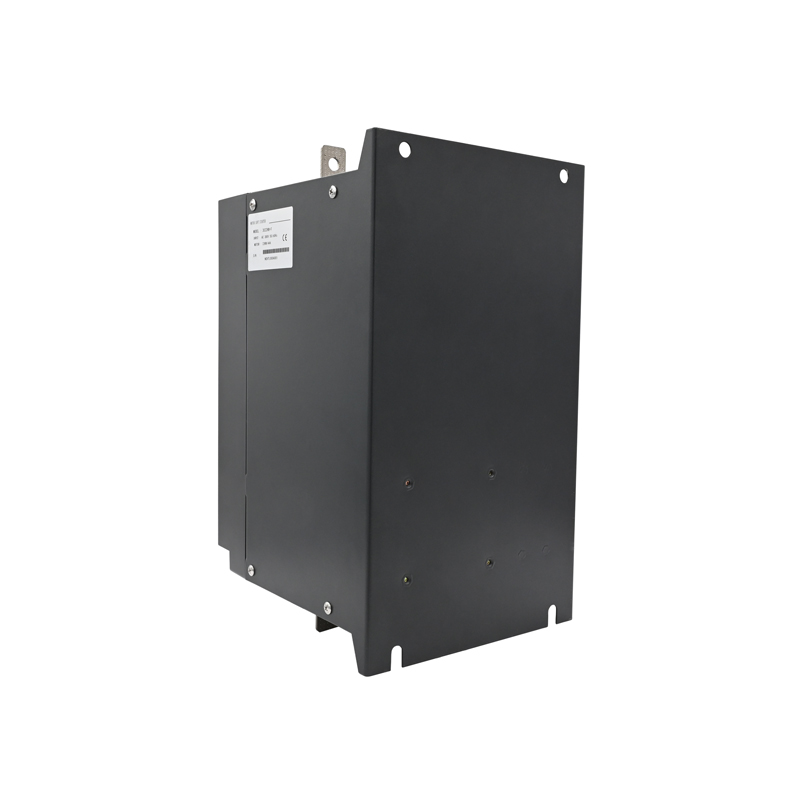

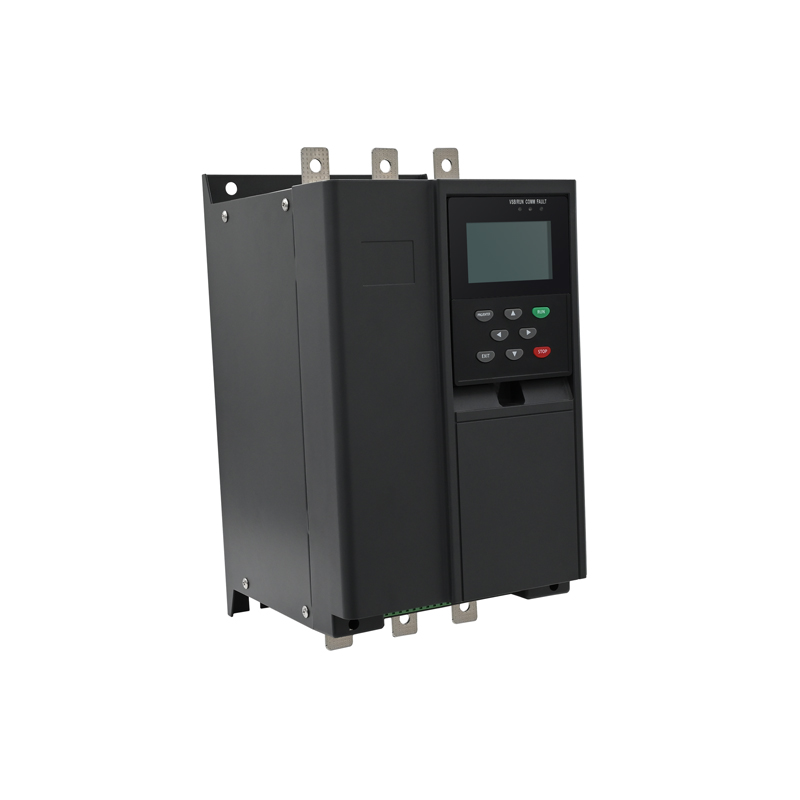

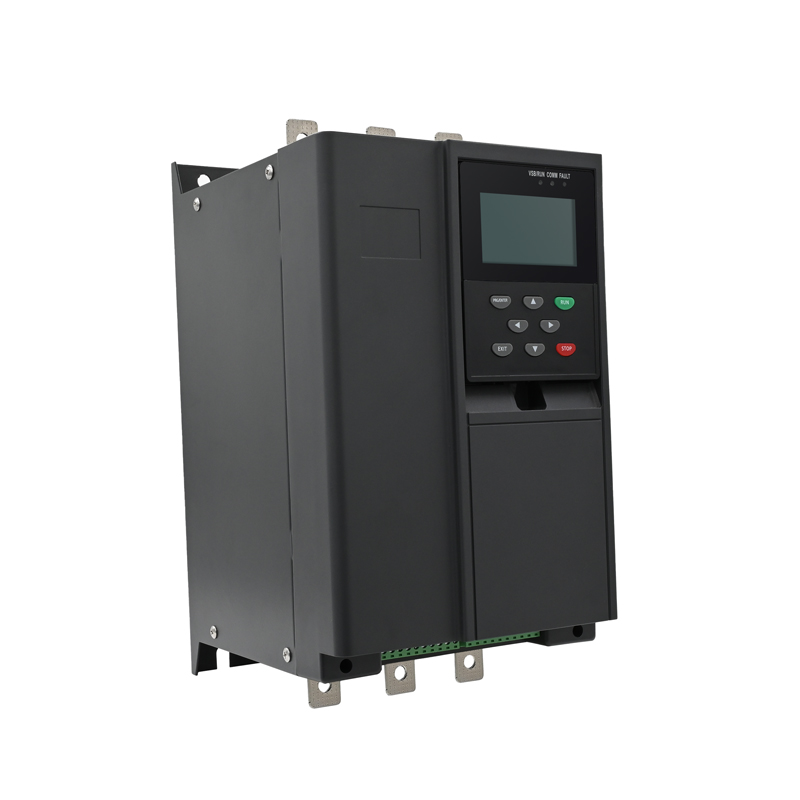

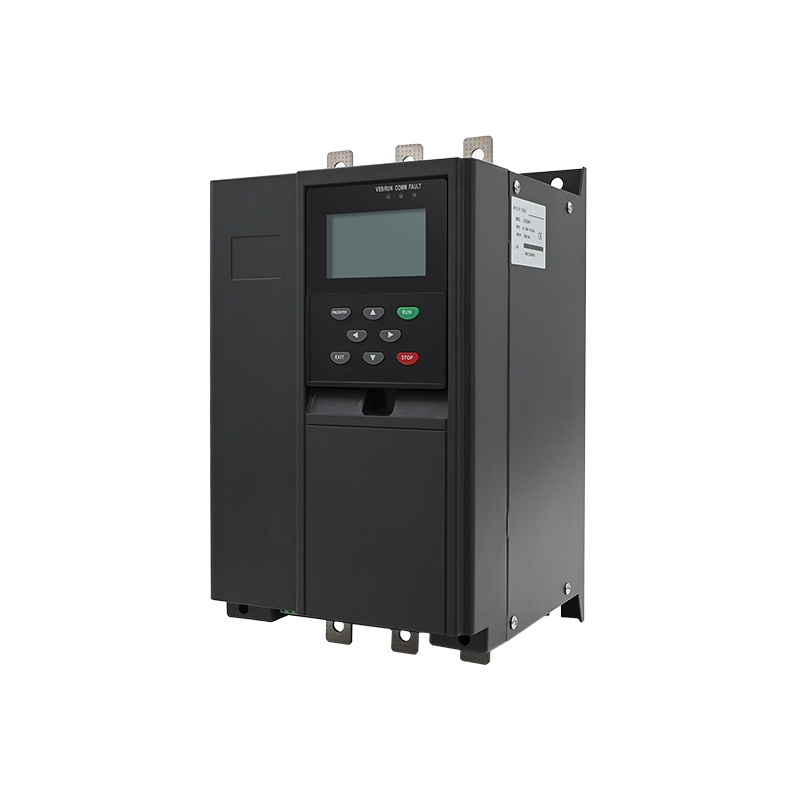

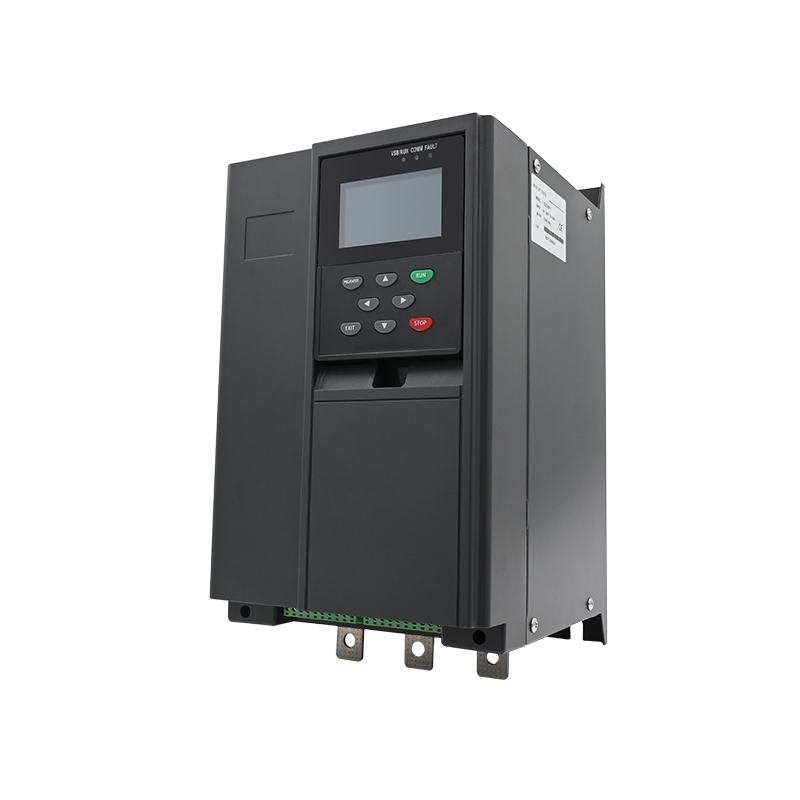

SSD60 Series Built-in Bypass Soft Starter controller


Availability:

Quantity:



Inquire Add to Basket

SSD60 is a new generation of motor soft starter developed and manufactured by Janson Controls. This series of products inherits the advantages of the previous generation of products, and optimizes software functions on this basis, so that the motor starting current is lower.

Model:
SSD60
Brand:
JANSON CONTROLS

Product Feature

Product Selection

Technical Parameter

Wiring Made Simple

Built-in bypass contactor eliminates external wiring – install in one step.
Eccentric Load? No Problem

Unique swing start function enables smooth starting even under unbalanced loads.
Customizable Protection

Thermal overload protection can be set according to actual load. Each protection function can be enabled or disabled independently.
One Device, Six Start Modes

Offers 6 starting methods and 2 driving modes (torque/smooth), adaptable to various working conditions.
Smart Interlock

Two independent programmable relays with delay settings make it easy to interlock with peripheral devices.
At-a-Glance Monitoring

Simultaneous three-phase current display, dual-language (English/Chinese) large screen, and one-click fault log review.

Bi-Directional Jog Control

Supports jog control in both forward and reverse directions for precise motor positioning.
Remote Communication

4–20 mA analog output + Modbus RTU communication for remote monitoring and one-click parameter download from the control system.
Power Matching Accuracy

If the soft starters rated power exceeds the actual load, the rated current can be adjusted to match the real load, ensuring precise startup, operation, and protection settings.

Product Selection

Item No.	Adaptable Motor (kW)	Current (A)	W (mm)	H (mm)	D (mm)	W1 (mm)	H1 (mm)	Diameter (mm)	GW (kg)
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance)
SSD60-4T-15	15	30	155	320	195	135	295	Ø6	5
SSD60-4T-22	22	45
SSD60-4T-30	30	60
SSD60-4T-37	37	75
SSD60-4T-45	45	90
SSD60-4T-55	55	110
SSD60-4T-75	75	150	245	410	255	200	345	Ø8	15
SSD60-4T-90	90	180
SSD60-4T-110	110	230
SSD60-4T-132	132	260	300	605	250	215	536	Ø8	22
SSD60-4T-160	160	320
SSD60-4T185	185	370
SSD60-4T-200	200	400
SSD60-4T-250	250	500	340	661	260	265	590	Ø10	30
SSD60-4T-280	280	560
SSD60-4T-320	320	630

Technical Parameter

Control power supply		AC 380V(-10%~15%), 50hz/60hz (provided internally, users do not need to connect externally.
Input power supply		AC 380V-10%~15% 50Hz/60Hz
Applicable motor		General squirrel cage AC asynchronous motor
Starting mode		Current limiting starting; Voltage ramp start; Sudden tripping current limiting start; Jump voltage ramp start; Inching start; Swing start.
Stop mode		Free shutdown; Soft shutdown; DC brake stop.
Relay output		Two way programmable output relay
Starting frequency		Not more than 15 times in an hour
Protection function		Input phase loss, startup overload, operation overload, overcurrent, current imbalance, overvoltage, undervoltage, overheating, output phase loss, etc.
Display		Large screen LCD, Chinese and English display modes. Display current three-phase output current, grid voltage, fault type, systemparameters and operating parameters.
Degree of protection		IP20(55kW and below) / IP00(75kW and above)
Cooling mode		Forced air cooling /natural cooling
Installation method		Wall mounted
Environment condition	Equipment site	Indoor, no direct sunlight, no dust, corrosive gas, fammable gas, oil mist,water vapor, dripping water or salt, etc.
	Ambient temperature	-25℃ ~+40℃
	Ambient humidity	Below 90%(no condensation)
	Vibration intensitty	Below 0.5g(acceleration)
	Altitude	Below 1000m(derating is required if the altitude exceeds)
Adapter motor		15~320KW
