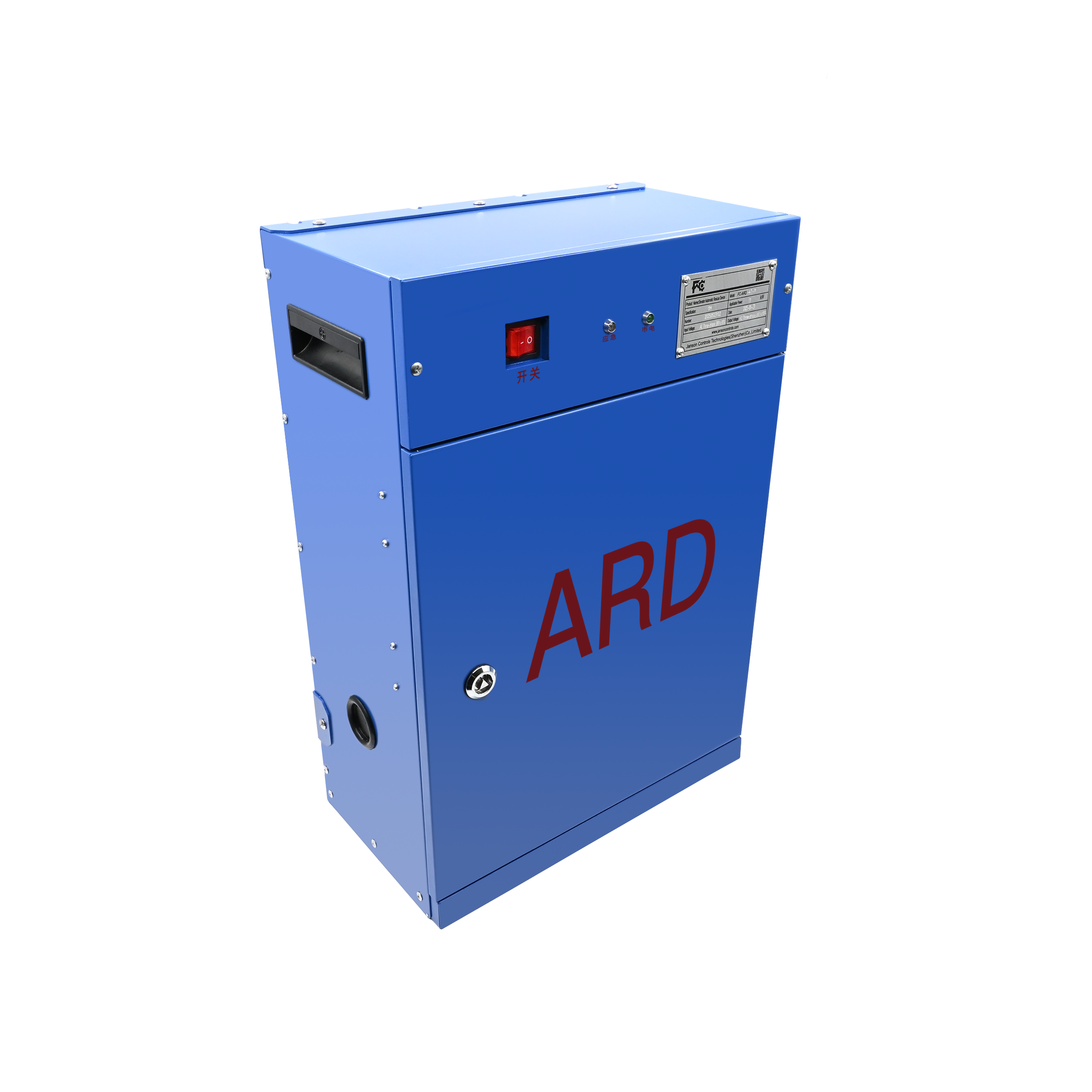

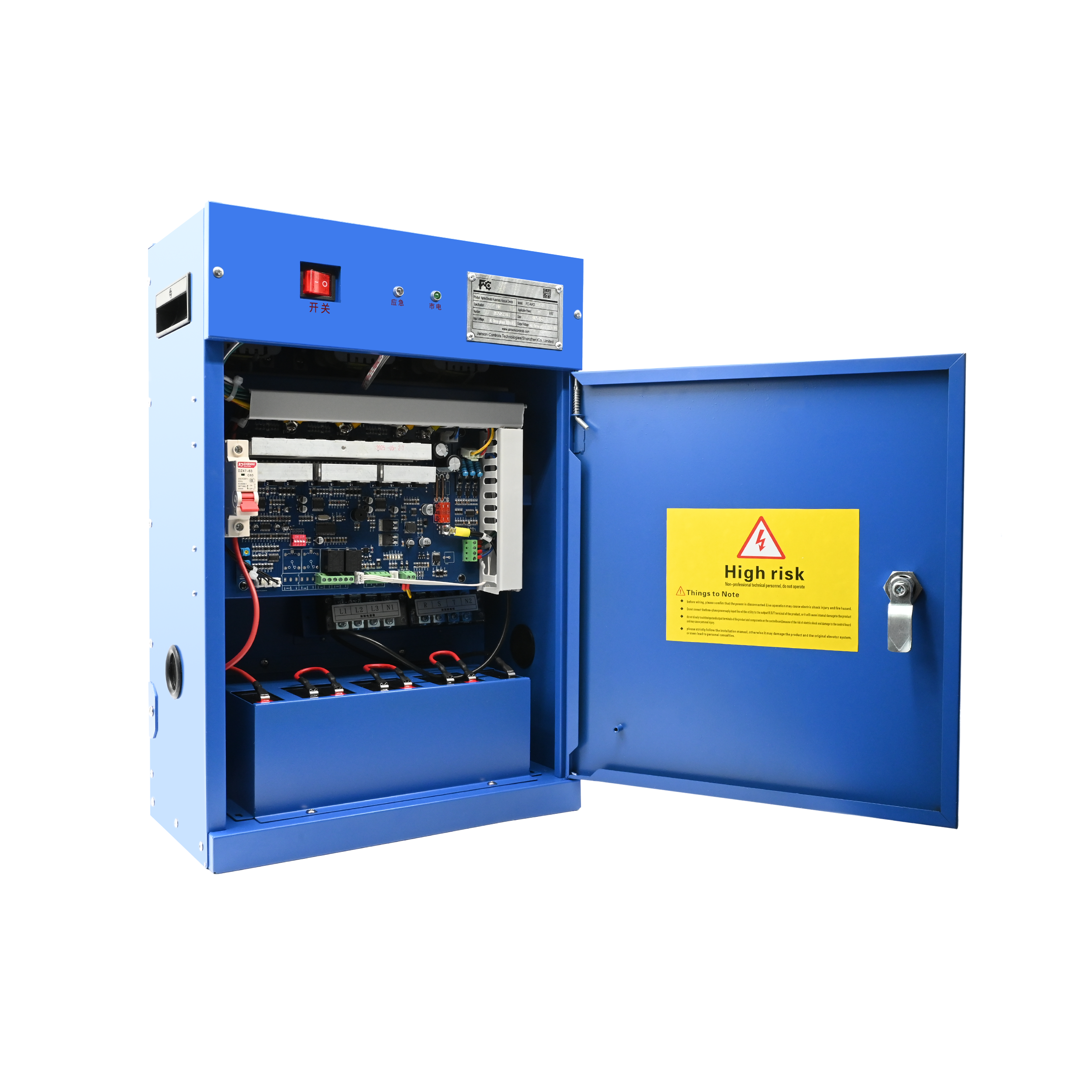

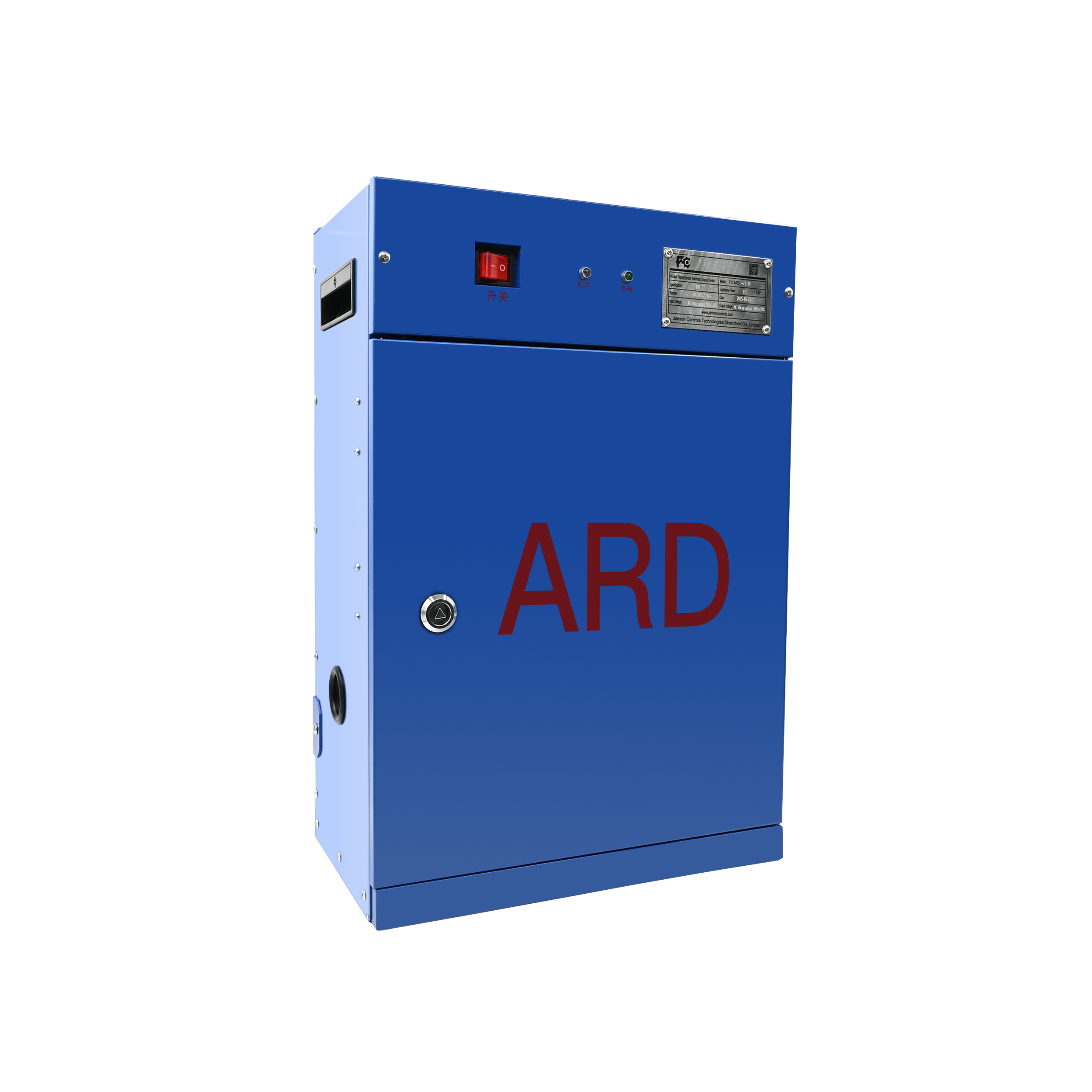

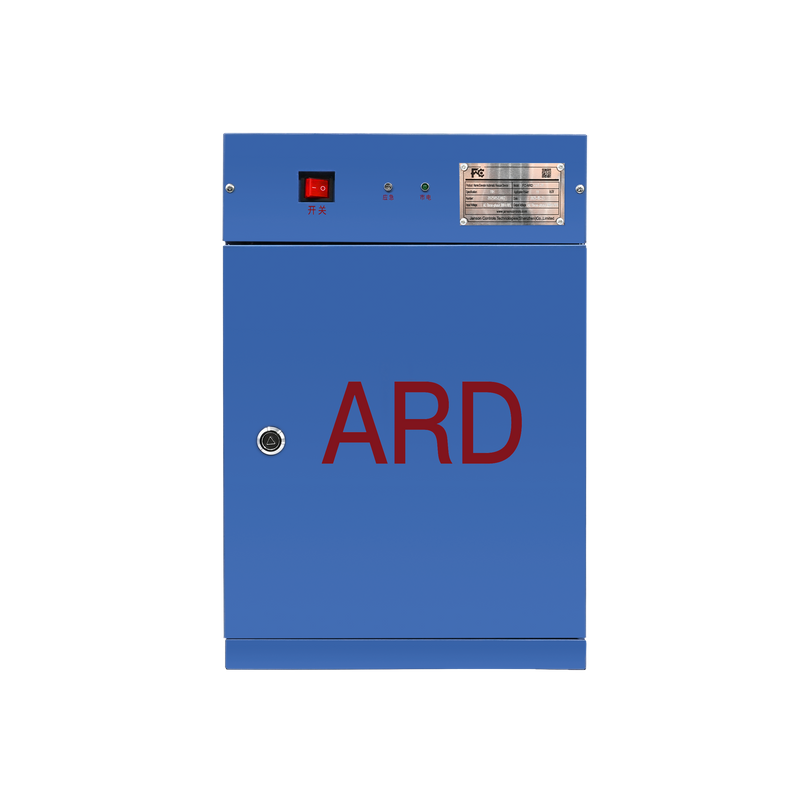

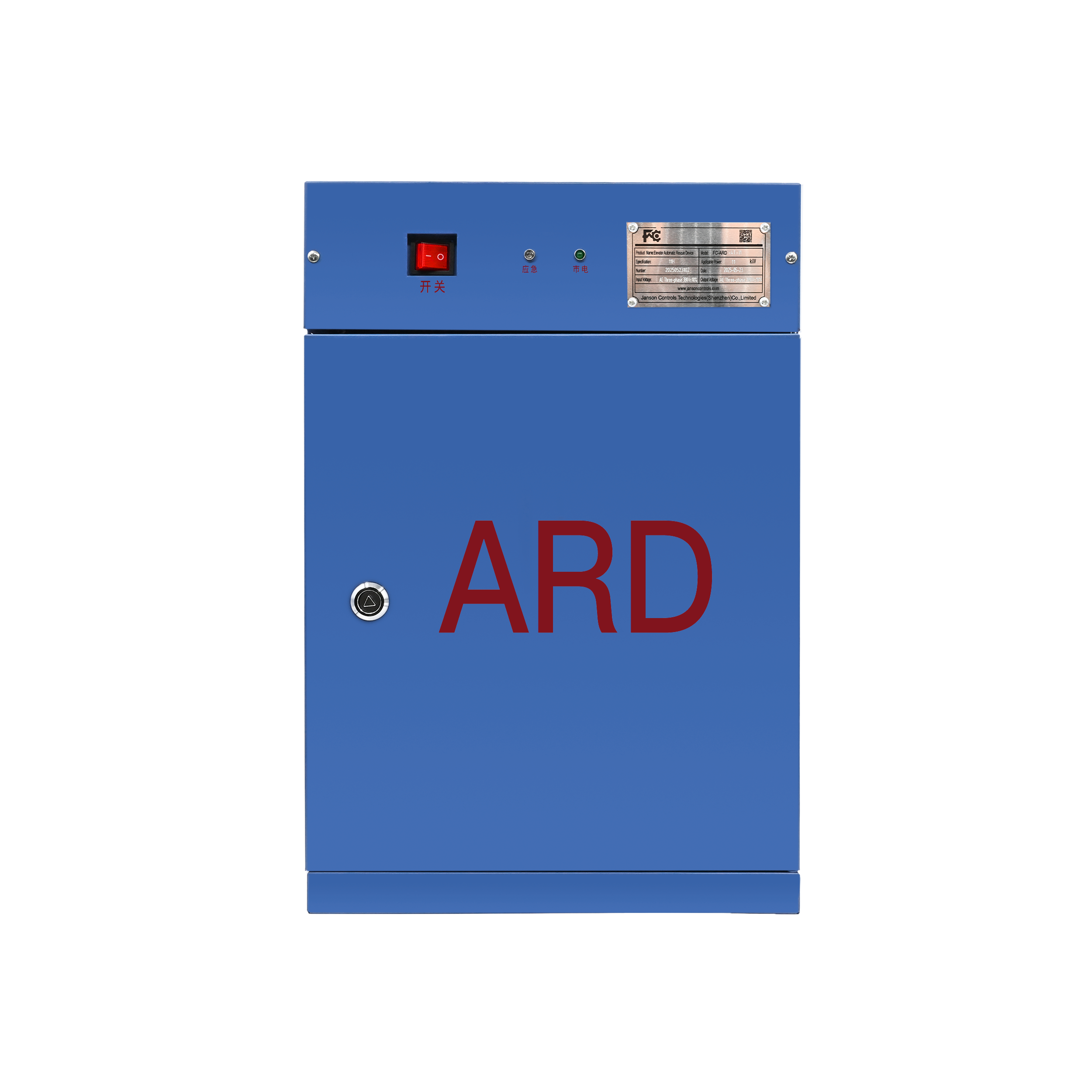

FC ARD 2 Series Auto Rescue Device For Elevators

SKU:
Availability:

Quantity:



Elevator Auto Rescue Device, hereinafter referred to as the (ARD), ARD to blackouts in power grid, automatic work within set time, to the elevator control system for three-phase emergency power supply, make the elevator can slow run to the flat layer position and open the door release passengers. ARD with a simple installation, convenient debugging,the characteristics of the high cost performance.
Inquire Add to Basket

Brake flow body control.

6 hours to charge 90% full potential.

Pulse width modulated sine wave output.

Can withstand 125% load continuously, 5 second delay protection.

Customization & ODM Capabilities

More Than a Standard Product. It's Your Custom Starting Point

This platform is designed for adaptation and supports:

Software Tailoring

Modify parameters and develop specialized functions.

Hardware Adaptation

Adjust mechanical design and swap key components.

Complete Branding

Apply your logo and packaging seamlessly.

content is empty!

Build Your Brand.

Shape the Future of Industry.

Janson Controls Technologies(Shenzhen)Co.,Limited

Add: 3rd Floor, Building E, Fuxing Industrial Park,No.110, Zhangqi Road,

Guixiang Community,Guanlan Street, Longhua District, Shenzhen, China.
Tel: +86-0755-29611160
Email: info@jansoncontrols.com

Working hours: Monday to Friday: 9:00 AM - 6:00 PM (GMT+8)

Model		FC-ARD-4T-7.5	FC-ARD-4T-11	FC-ARD-4T-15	FC-ARD-4T-18	FC-ARD-4T-22
Load		10HP(7.5KW))	13HP (11kW)	18HP (15KW)	20HP (18KW)	24HP (22KW)
AC input range		380V / 220VAC + 15% Three phase input 50/60Hz ± 10%
DC voltage		48VDC	60VDC	72VDC	84VDC	96VDC
Charging way		Brake flow body control
Charging time		6 hours to charge 90% full potential
Reverse Flow apparatus	Spec	Pulse width modulated sine wave output
	Output voltage	400V / 415V / 200Vac Three phase output 50/60Hz ± 0.1Hz
	Potency	85%
	Overload	Can withstand 125% load continuously, 5 second delay protection.
	Harmonic distortion	Less than 3% at linear load.
	Wave due to the number of	4:1
	Power due to the number of	0.8
	Phase difference	120° ± 1°
Size (length x width x height)		400170740 mm / 400190760 mm
LCD		Mains is normal, normal inverter, battery low voltage, over load.
Protect		Output overload and short protection behavior, straight flow output is low/high protection.
