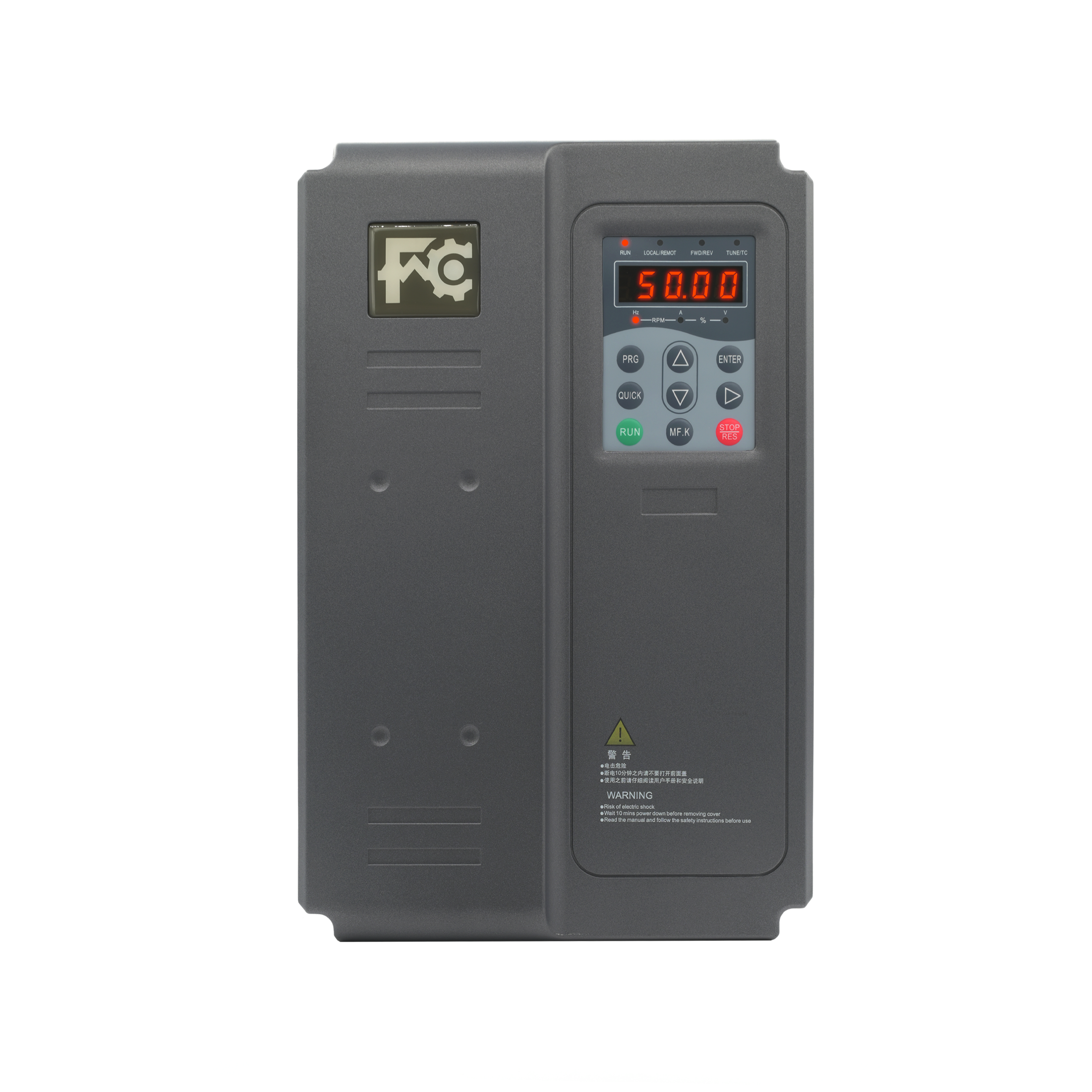

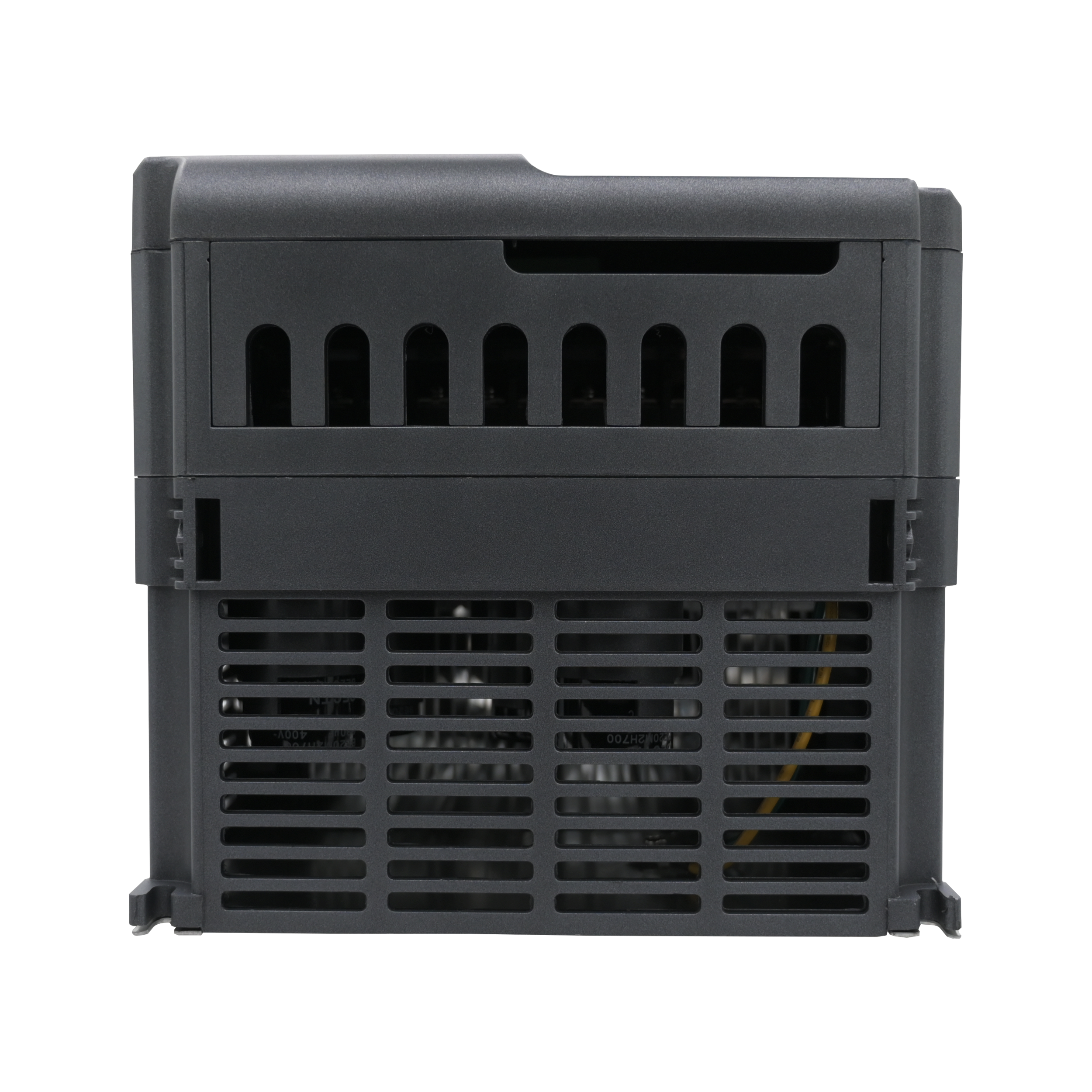

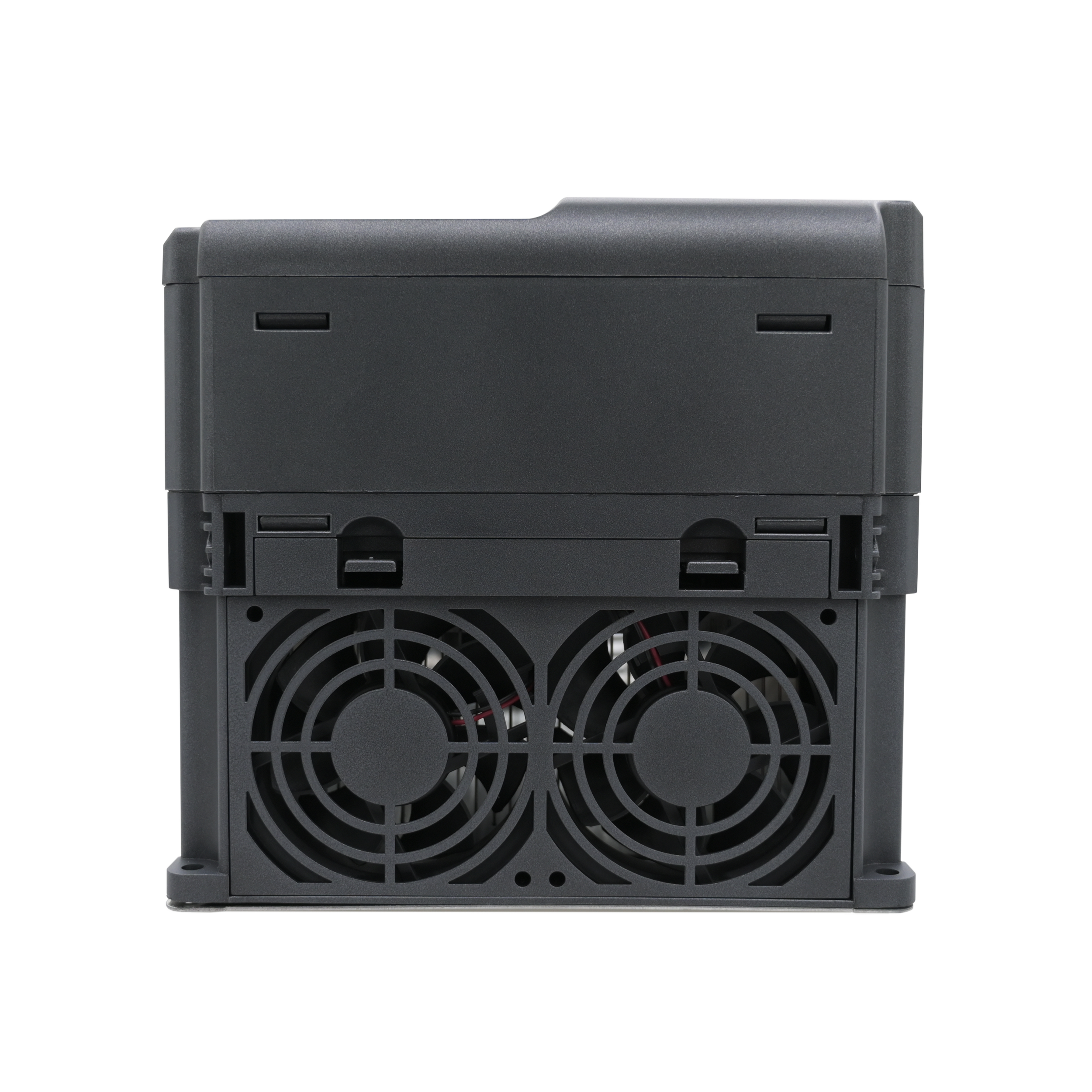

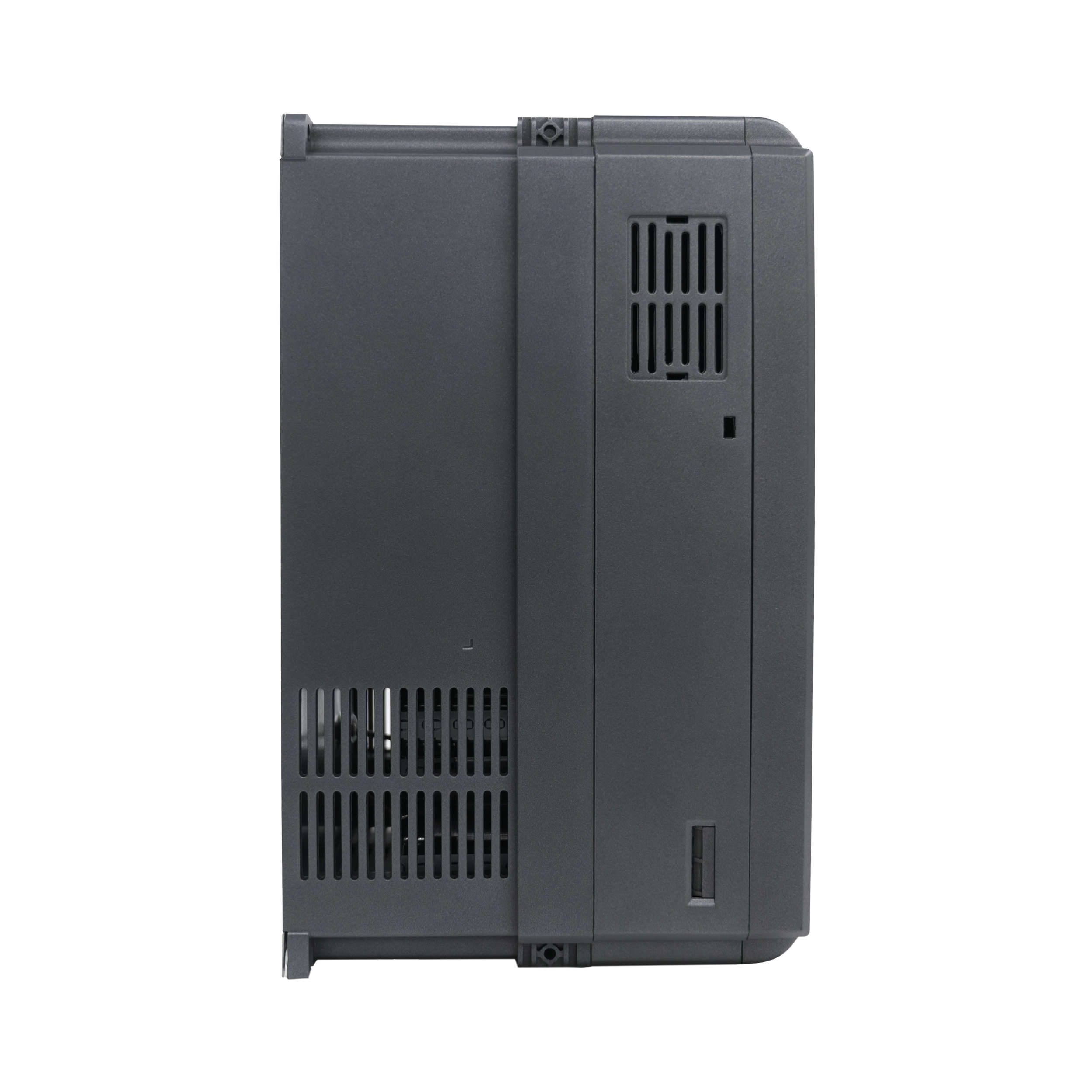

FC320L
JANSON CONTROLS
Suitability:Suitable for the drive control of permanent magnet synchronous motors and asynchronous motors, equipped with a variety of rotary encoder interfaces.
Rich Elevator Functions: Features a range of elevator functions, including enable detection, brake contactor control, output contactor control, forced deceleration judgment, overspeed protection, speed deviation detection, early door opening, contact adhesion detection, motor overheat detection, and startup pre-torque compensation. These special functions make elevator control simple and easy.
Intelligent Tuning: Capable of self-tuning motor parameters, supporting both static and full tuning. Flexible startup curve processing, multi-segment S-curve setting, and 4-level acceleration and deceleration time settings ensure a comfortable elevator ride.
Convenient Features: Equipped with a practical battery operation function, allowing 48V power input for power failure self-rescue. The unique one-key design of the operation panel simplifies complex keyboard operations. The RJ45 port enables connection at any position, facilitating elevator debugging.The built-in DC reactor and braking unit improve the system's output power factor and reduce the cost of external electrical system components.
Reliable Design: The entire series features an independent air duct design, professional lightning protection design, a professional processing and production platform, and advanced process control to ensure the quality of the FC320L elevator dedicated inverter.
| Item No. | Adaptable Motor (kW) | Input Current (A) | Output Current (A) | Rate Capacity (kVA) | W (mm) | H (mm) | D (mm) | W1 (mm) | H1 (mm) | GW (kg) |
| 1/3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||
| FC320L-4T-4.0GB | 4 | 10.5 | 9 | 5.9 | 160 | 248 | 183 | 148 | 236 | 2.5 |
| FC320L-4T-5.5GB | 5.5 | 14.8 | 13 | 8.9 | ||||||
| FC320L-4T-7.5GB-M | 7.5 | 20.5 | 18 | 11 | ||||||
| FC320L-4T-7.5GB | 7.5 | 19 | 17 | 11 | 208 | 322 | 192 | 190 | 305 | 6.5 |
| FC320L-4T-11GB | 11 | 28 | 25 | 16 | 6.8 | |||||
| FC320L-4T-15GB | 15 | 35 | 32 | 21 | 7.3 | |||||
| Item No. | Remark | ||||||||||
| 320L-PG-A4 | AB Incrementall Encoder | ||||||||||
| 320L-PG-C | Sin/Cos Encoder | ||||||||||
| 320L-PG-C2 | |||||||||||
| 320L-PG-C3 | |||||||||||
| 320L-PG-B | UVW Encoder | ||||||||||
| 320L-PG-C5 | Absolute Encoder Endat | ||||||||||
| Basic Specifications | |
| Carrier frequency | 2kHz～16kHz；According to the load characteristics, the carrier frequency is automatically adjusted |
| Input frequency resolution | Digital setting： 0.01Hz |
| Analog setting: maximum frequency × 0.1% | |
| Output frequency accuracy | Digital setting: maximum frequency × ±0.01% |
| Analog setting: maximum frequency × ±0.01% | |
| Control method | Open-loop vector control (SVC)/ closed-loop vector control (FVC)/ VF control |
| Starting torque | 0.5Hz/180%（SVC）； 0Hz/200%（FVC） |
| Speed range | 1：100（SVC）/1：1000（FVC） /1：50 （V/F） |
| Steady speed accuracy | ±0.5%（SVC） ±0.05%（FVC） |
| Overload capacity | 150% rated current for 60 seconds; 180% rated current for 1 second. |
| Motor tuning | Tuning with load; Tuning without load |
| Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration methods; four sets of acceleration and deceleration time and four sets of S-curve settings; various combinations |
| Maintenance control | Can be specified by any number of speeds |
| Multi-speed operation | Realize up to 8-speed operation |
| Automatic voltage regulator（AVR） | When the grid voltage changes, it can automatically keep the output voltage constant |
| Display And Operation | |
| LED display | Can display setting frequency, output frequency, output voltage, output current and other parameters. |
| Protective function | Power-on short circuit detection, input and output phase loss protection, overcurrent protection, overvoltage protection, under-voltage protection 40 kinds of protection. |
| Key lock and function selection | Realize the partial or complete locking of the keys, and define the scope of action of some keys to prevent misuse. |
| Personalization | |
| Power-on peripheral equipment safety self-test | It can realize safety detection of peripheral equipment such as grounding, short circuit etc. |
| Power failure emergency Operation | Simple and convenient implementation of emergency operation plan |
| Over-speed protection | Built-in elevator overspeed protection function; multiple action options |
| Judge speed deviation | Built-in speed deviation detection function; discover potential hidden dangers of elevators in time. |
| Forced shift function | It has the function of forced speed change detection; it can effectively prevent the elevator from rushing to the top and squatting at the bottom. |
| Direct docking function | Combined with direct docking commands for crawl-free operation |
| Motor temperature detection | Timely judge the motor temperature to eliminate potential safety hazards |
| Start compensation | Three starting torque compensation methods: analog, digital, no weighing |
| QUICK button | User-defined shortcut menu |
| Timing control | Convenient timing control function |
| Input And Output Characteristics | |
| Run command channel | Two channels: operation panel given, control terminal given. |
| Frequency source | 4 frequency sources: digital reference, multi-speed reference, analog voltage 1 reference, and analog voltage 2 reference. |
| Input terminal | 10 digital input terminals, one of which can be used as high-speed pulse input, compatible with active PNP or NPN input mode. |
| 2 analog input terminals, one of which can only be used as voltage input, and the other can be used as voltage input or current input. | |
| Output terminal | 3 digital output terminals |
| 2 relay output terminals | |
| 1 channel of analog output terminal, 0/4 ~ 20mA or 0/2 ~ 10V can be selected respectively, which can realize the output of physical quantities such as set frequency and output frequency | |
| Environmental Characteristics | |
| Working temperature | -10~+40℃, up to 50℃, air temperature change is less than 0.5℃/min |
| Storage temperature | -40~+70℃ |
| Application occasion | Indoors, free from direct sunlight, dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt etc. |
| Altitude | Less than 1000 meters, derating is required for more than 1000 meters |
| Humidity | Less than 95%RH, no condensation |
| Vibration resistance | 3.5m/s² at 2-9Hz, 10m/s² at 9-200Hz (IEC60721-3-3) |
| Protection degree | IP20 |
| Pollution level | Class 2 (dry, non-conductive dust pollution) |
