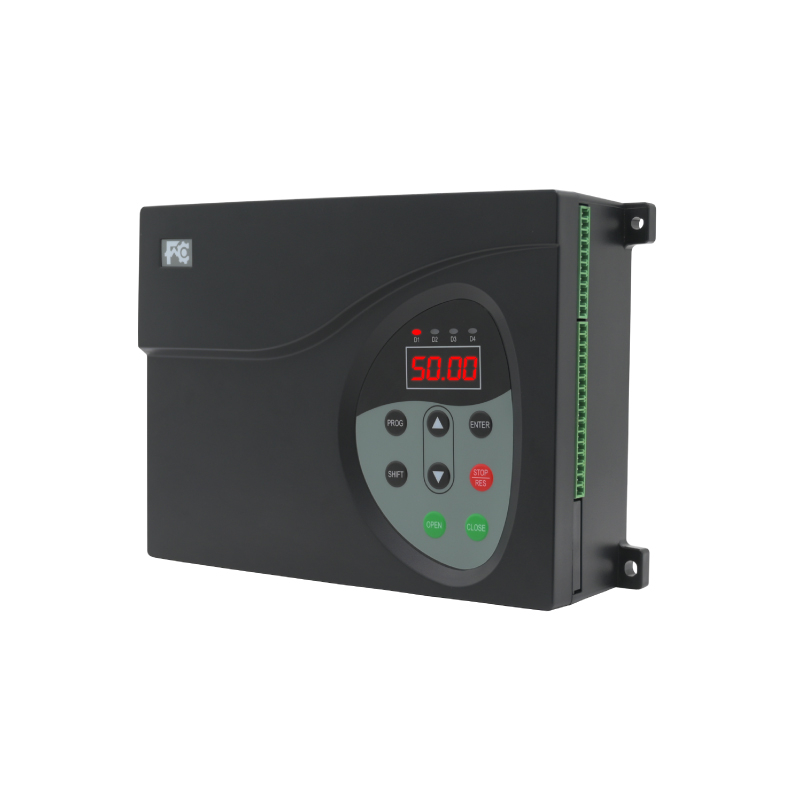

DM100 Series Integrated Door Operator Controller

DM100 Series Integrated Door Operator Controller


Availability:

Quantity:



Inquire Add to Basket

DM100 series integrated door controller is a variable frequency controller system specially designed to drive doors. It integrates the door opening/closing logic control and motor drive, and implements the entire door system, with door opening/closing commands from external systems. DM100 can drive AC asynchronous motor and permanent magnet synchronous motor, and supports two control modes, speed control and distance control. Suitable for a wide range of applications, it can meet the drive and control requirements of most door systems.

Product Feature

Product Selection

Technical Parameter

1. Support two auto-adjustment modes, with -load auto-tuning and no-load auto-tuning

2. For CLVC on AC permanent magnet synchronous motors using universal ABZ encoders, turn on to support collector output or push-pull output

3. For SVC, fixed torque boost and other functions, customized support torque boost and overexcitation

4. Support automatic adjustment of door width

5. Support automatic presentation

6. Support automatic identification of obstacles

Item No.	Adaptable Motor (kW)	Input Current (A)	Output Current (A)	Rate Capacity (kVA)	W (mm)	H (mm)	D (mm)	GW (kg)
1 Phase Input and 1 Phase Output 220V (-15%~+20% Tolerance)
DM100-2S-0.2	0.2	2.70	1.30	0.50	300.00	160.00	70.00	1.00
DM100-2S-0.4	0.4	5.40	2.30	1.00	300.00	160.00	70.00	1.00
DM100-2S-0.7	0.7	8.20	4.00	1.50	300.00	160.00	70.00	1.00

Item		Basic parameters
Basic specifications	Maximum output frequency	99.00 Hz
	Speed range	1:50 (SVC) 1:1000 (CLVC) SVC: Sensorless vector control CLVC: Closed-loop vector control
	Speed stability	±0.5% (SVC) ±0.05% (CLVC)
	Startup torque	1 Hz/150% (SVC) 0 Hz/180% (CLVC)
	Frequency resolution	0.01 Hz
	Current resolution	0.01 A
	Carrier frequency	2–16 kHz
Major functions		Two auto-tuning modes are supported, with-load auto-tuning and no-load autotuning.
		For CLVC on the AC PMSM using a common ABZ encoder, opencollector output or push-pull output is supported.
		For SVC, functions such as fixed torque boost, customized torque boost and overexcitation are supported.
		Door width auto-tuning is supported.
		Automatic demonstration is supported.
		Automatic identification upon hindering is supported.
Protection functions		Controller overload protection (1 minute for 150% of rated current , 1 second for 180% of rated current) is supported.
Protection functions		Protections on overvoltage, undervoltage, overcurrent, output phase loss and interphase short circuit are supported.
Environment	Installation location	Indoors,Free from direct sunlight, dust, corrosive gas, combustible gas, oil mist, vapor, drip and salt.
	Altitude	Lower than 1000 m Deratedif the altitude is above 1000 m
	Ambient temperature	-10°C to +40°C Derated if ambient temperature is within 45–50°C
	Humidity	Less than 95% RH, non-condensing
	Vibration	< 5.9 m/s2(0.6 g)
	Storage temperature	-20°C to +60°C
	Cooling method	Natural cooling for 0.2 kW Forced air cooling for 0.4 kW and 0.75 kW
	Ingress protection	IP20
	Storage location	Indoors, clean and dry
	Transportation	Packed in standard box and transported by coach, train, aircraft or ship.
	Vibration during transportation	15 m/s2 (1.5 g) when SIN vibration is 9–200 Hz
